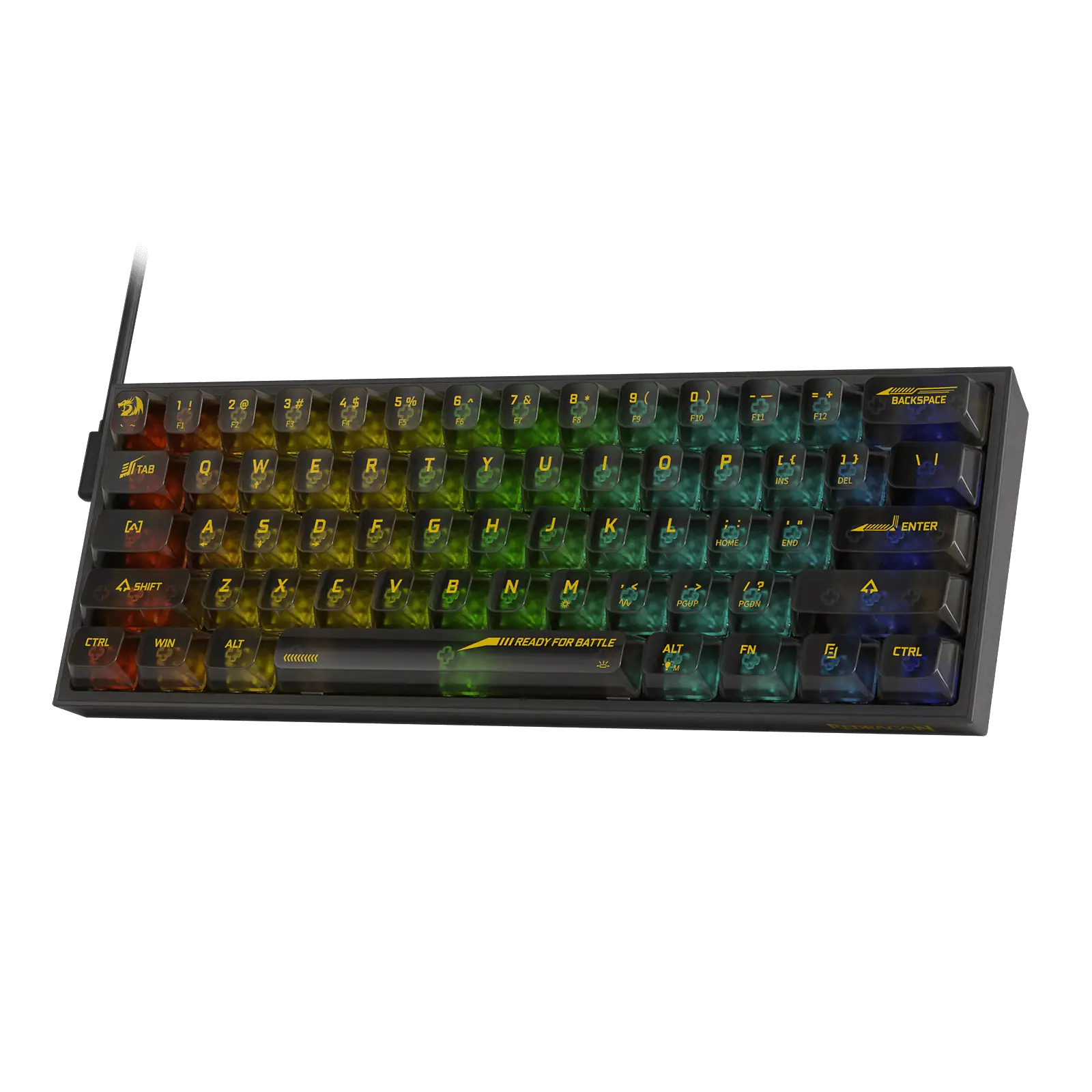

Redragon FIZZ K617 SE Full-Transparent Mechanical Keyboard

Redragon FIZZ K617 SE Full-Transparent Mechanical Keyboard

By Redragon · Mechanical Keyboards · Home & Workspace · More from Redragon

  • 60% 61-key layout
  • Wired USB Type-C detachable cable
  • RGB backlighting up to 20 preset modes
  • Custom linear switches
  • 11.5x3.9x1.4 in, 0.59 kg

Price not listed

New
Used, refurbished, open-box

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Problems, parts and running costs

Summary

A 60% wired mechanical keyboard with a fully transparent case, keycaps and switches, custom linear switches and RGB up to 20 presets, aimed at small desks and FPS play. Check the unpublished specs before buying: Redragon does not state switch force, keycap material or LED orientation for this variant, and both colors were sold out on the manufacturer page at fetch time.

Strengths

  • RGB with up to 20 presets plus adjustable brightness and flow speed, and software for macros and remapping.
  • Height-adjustable case and a standard ANSI 60% layout, so aftermarket keycap sets fit.
  • 2-year manufacturer warranty on new products bought directly from Redragonshop.com.

Weaknesses

  • Several SE-specific specs are unpublished: switch force, keycap material, LED orientation and confirmed hot-swap.
  • The 60% layout drops function keys, arrows and the numpad, which hinders office and spreadsheet work.
  • Family reviews describe a tray-mount plastic case that transmits keystroke vibration and more noise.
  • No wireless, VIA/QMK, dedicated media keys or rapid trigger.
  • Third-party RGB software has been linked to failures in owner reports, with no defect-rate data.
  • Both color variants were sold out on the manufacturer page at fetch time.

Verified specifications

ModelRedragon FIZZ K617 SE Full-Transparent Mechanical Keyboard; SKU RED-K617-R15TBK.
Layout60%, 61 keys, US QWERTY / ANSI.
Connectionwired, detachable USB Type-C cable.
Switches“Custom Linear Switch” only on the SE page; actuation force, travel and lifespan are not published for this variant.
RGBup to 20 preset backlighting modes, with adjustable brightness and flow speed; custom modes, macros and key remapping through Redragon software.
Rolloverfull rollover / N-key rollover.
Polling rate1000 Hz reported for the K617 Fizz family, not stated on the SE page.
Height adjustmentyes.
SoftwareRedragon companion software for macros, RGB and key remapping; no VIA/QMK support reported for the family.
Wireless/Bluetoothnone.
Dedicated media keysnone; media controls are on the Fn layer.
Rapid triggernot supported.
CompatibilityWindows and Mac reported.
Warranty2 years for new products purchased from Redragonshop.com; 1 year for monitors and 6 months for open-box products.
Dimensions11.5 x 3.9 x 1.4 in; 0.59 kg.
Includedkeyboard, detachable USB Type-C cable, keycap and switch puller, spare switches, user manual.
Non-SE family variants measured 296 x 105 x 36 mm and 430 g, or 295 x 105 x 38 mm and 600 g with a 1.8 m cable.
Full research notes and sources

Which model this is

This page covers the K617 SE Full-Transparent variant, SKU RED-K617-R15TBK, with black and white color options shown on the manufacturer page. Do not merge it with other K617 Fizz variants (grey, white or pink standard boards) or the magnetic-switch K617: those may use different keycap materials, switches and dimensions. Family-review findings about hot-swap, polling, case mount and LED orientation are evidence for the related board, not confirmed measurements of the transparent SE.

Switches and build

Redragon publishes only “Custom Linear Switch” for this variant, so the 35 g actuation, 2 mm actuation point and 4 mm total travel cited for non-SE K617 Fizz boards are not confirmed here. The case is fully transparent across keycaps, switches and board, but the specific plastic is not named. Standard ANSI 60% sizing means common aftermarket keycap sets should fit.

Software and RGB

Lighting runs up to 20 presets with adjustable brightness and flow speed on the keyboard, and the Redragon companion software adds custom modes, macros and key remapping. The family has no VIA or QMK support. Owner discussion titles flag possible failures after using third-party RGB software such as OpenRGB, alongside reports of long-term use. These are signals, not defect rates.

Layout and daily use

The 60% layout suits small desks and FPS play, but removes the function row, arrow cluster and numpad; office-heavy work suffers. Family reviews cite 1000 Hz polling and full N-key rollover. There is no wireless, no USB passthrough, no dedicated media keys and no rapid trigger. One owner reports paying $25 for a K617 board.

Is it worth it?

At the manufacturer’s $54.99 listing with code GHOST15, the board is strong value for a compact RGB mechanical keyboard with apparent hot-swap support, a standard layout and included puller and spare switches. Value drops if sold-out status forces a third-party markup, or if you need wireless, VIA/QMK, rapid trigger or a larger layout. Above $70, compare other 60% hot-swap boards with confirmed specs and warranty terms.

Warranty and support

Redragonshop.com states a 2-year warranty for new products, with 1 year for monitors and 6 months for open-box items. Maintenance is routine: clean keycaps and switches, configure lighting in Redragon software and use the Fn layer for media controls. The detachable cable means a damaged cable is a cheap replacement rather than a keyboard replacement, and hot-swap sockets allow switch replacement without soldering.
