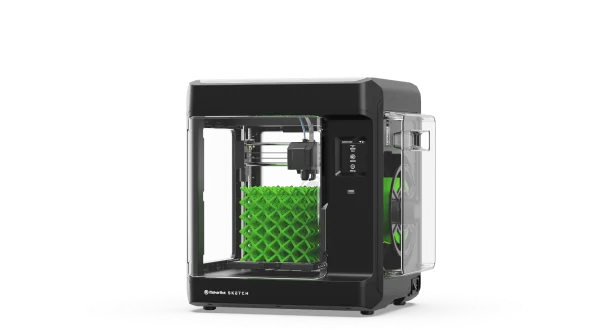

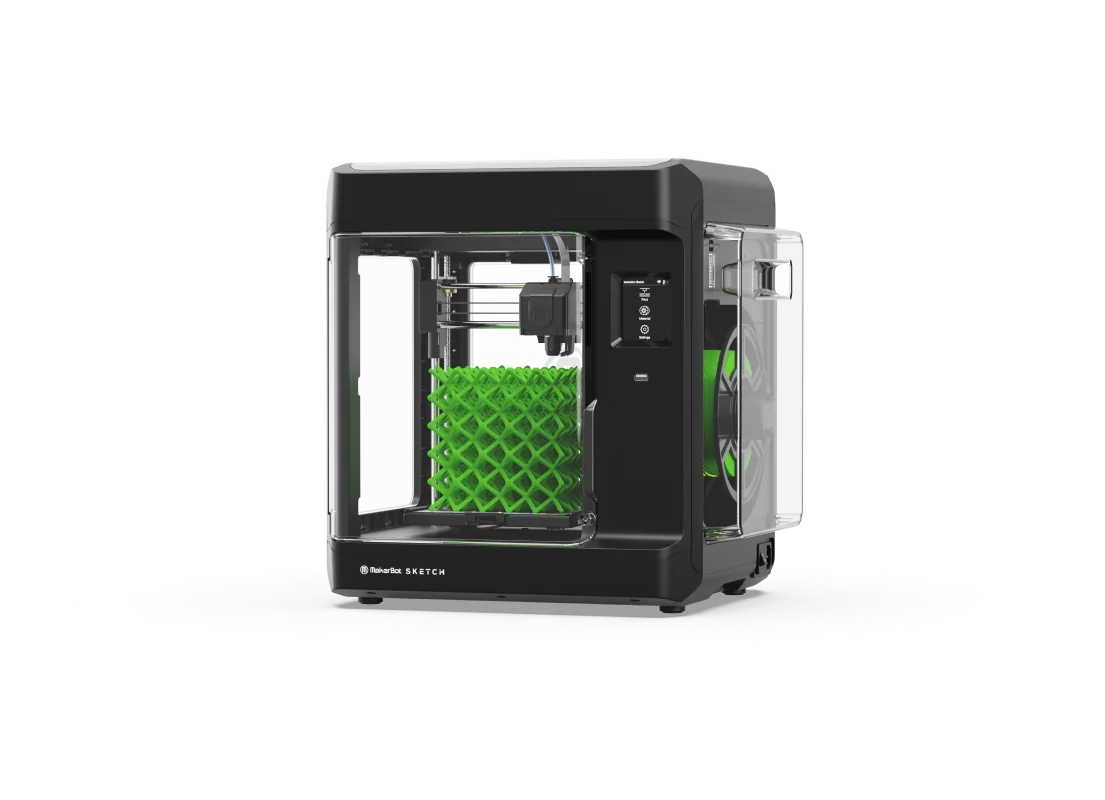

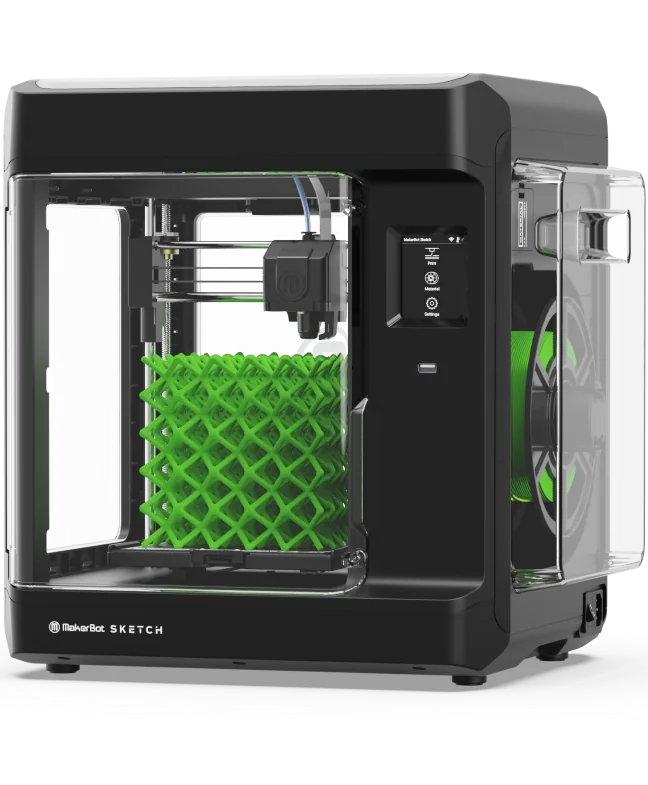

MakerBot Sketch

MakerBot Sketch

By MakerBot · Enclosed 3D Printers · 3D Printing

  • Build volume 150 x 150 x 150 mm (5.9 x 5.9 x 5.9 in)
  • Layer resolution 100-400 microns
  • 0.4 mm nozzle, PLA and Tough PLA
  • Weight 11.8 kg (26 lb)
  • Heated flexible build plate, enclosed with particulate filter

Price not listed

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Summary

An enclosed, PLA-only classroom 3D printer with a 150 mm cube build volume, sold as an education bundle rather than a consumer machine. Check the software and the warranty before you buy: the bundled CloudPrint slicer was shut down in December 2025, and the extruder has no warranty in North America.

Strengths

  • Fully enclosed with a factory particulate filter and UL certification, which suits a classroom.
  • Paid bundles include 600+ lesson plans and ISTE-certified teacher and student seats.
  • The extruder is a tool-free, user-replaceable module.
  • A heated, removable flexible build plate and a 2 MP camera for remote monitoring.
  • Simple operation: color touchscreen, filament detection and auto load/unload.
  • MakerBot says its printers are used across 10,000+ schools, with cloud queuing for fleets.

Weaknesses

  • The Sketch extruder has 0 months of warranty in North America, and it is the machine’s main wear part.
  • Build plate, filament and SD card are excluded from the limited warranty, and owners report slightly warped plates.
  • Materials are limited to MakerBot PLA and Tough PLA, with no ABS, PETG or soluble supports.
  • The printer reads only .makerbot files, so slicing depends on Digital Factory or Cura.
  • The 150 mm cube and 100 mm/sec ceiling are modest next to newer machines.

Verified specifications

ModelMakerBot Sketch / Sketch Standard, CAT NO. PAFW98.
Technologyfused deposition modeling (FDM), single extrusion, user-replaceable extruder.
Build volume150 × 150 × 150 mm (5.9 × 5.9 × 5.9 in).
Layer resolution100–400 microns; print mode tuned for 200 microns.
Nozzle0.4 mm, brass.
Filament1.75 mm; MakerBot Sketch PLA and MakerBot Tough only.
Print headone, user-replaceable.
Maximum print speedup to 100 mm/sec.
Build plateheated, removable and flexible, up to 110 °C, with a “Grip Surface”.
Display2.8 in color touchscreen.
Camera2 megapixels.
Sensorsfilament detection with auto load and unload.
Enclosurefully enclosed with a particulate filter.
ConnectivityUSB, Ethernet, Wi-Fi.
Printer file type.makerbot; Digital Factory also accepts .stl, .obj and .3mf.
Electrical100–240 V, 50–60 Hz, 2.7–1.3 A.
CertificationsUL, CE and FCC, tested to IEC/EN/UL 60950-1 and 62368-1.
Storage temperature0–55 °C (32–131 °F).
Dimensions16.6 × 14.4 × 17 in (423 × 365 × 433 mm); 26 lb (11.8 kg).
Warranty12 months for the printer; 0 months for the Sketch extruder in North America, APJ and LATAM.
Full research notes and sources

Software and slicing

The Sketch does not read STL files directly; it prints .makerbot files produced by a slicer. The bundled slicer, MakerBot CloudPrint, was announced as retired on October 1, 2025 and shut down in early December 2025, and MakerBot Print’s login servers were decommissioned in December 2025. MakerBot Print never listed the Sketch as a compatible printer, and it runs only on Windows 7/10 and macOS 10.12–10.15.

The replacement is UltiMaker Digital Factory, which does support the Sketch, accepts .stl, .obj and .3mf directly and exposes nozzle and build-plate temperature plus over 200 more settings. All3DP reported the same path at the Sketch Sprint launch, confirming Sketch-series compatibility with Cura 5.9. The catch is the free tier: Digital Factory EDU Free includes unlimited printers and 5 seats but only 5 library projects and 20 print jobs of history, with EDU Lab at $1000 and EDU Campus at $5000 (MakerBot, 2026).

Warranty, support and repairs

The printer carries 12 months of warranty in every region, but MakerBot’s own warranty-period table lists the Sketch extruder at 0 months for North America, APJ and LATAM and 12 months only in EMEA. The extruder is the primary wear part, and MakerBot’s most-viewed Sketch troubleshooting article is “Unclogging the extruder” at 19,400 views. The limited warranty also excludes filament, the SD card and the build plate as consumables, and one classroom owner reports the removable flexible build plates on their Sketch units are “slightly warped”.

MakerCare extended service is sold separately: the 2-year Sketch plan is $250 and the 3-year plan $350 in the UltiMaker store. Free email support runs for 60 days from delivery without MakerCare, replacement parts and shipping are billed unless the problem is a valid warranty claim, and returns on electronics carry a 15% restocking fee within 30 days. The manual states the electronics are not user serviceable, so board, power-supply and motor faults are not owner-fixable; the extruder is the one part you can swap yourself, tool-free, once it has cooled below 50 °C.

MakerBot lists the printer-only configuration at $799 on makerbot.com and $999 in the UltiMaker store; the certified single-printer bundle is $1,299 and the two-printer classroom bundle $1,999 (MakerBot and UltiMaker store, 2026). Resellers run higher, from $1,299 at 3DMakerWorld to $2,699 at Filaments.ca. MakerCare is $250 for two years or $350 for three.

Consumables add up and are proprietary. MakerBot Sketch PLA is sold in a 5-pack for $195.00, about $39/kg, and a 10-pack of core colors for $312.00, with Tough PLA in a 4-pack at $156.00 (UltiMaker store, 2026). All3DP puts MakerBot Sketch brand PLA at around $40 per kg, and no third-party filament is endorsed. Build plates are orderable as a 2-pack for $79.00, about $39.50 each (UltiMaker store, 2026), and the extruder is a consumable with a 0-month US warranty.

Owner reports

Owner evidence is thin and mostly institutional. A lending organisation running Sketch units in schools reports that units which joined Wi-Fi at their warehouse no longer connected at schools, that none recognised FAT32-formatted USB drives, and that Ethernet also failed, with MakerBot tickets open for over a month and no response. MakerBot’s own support view counts line up with where the friction is: unclogging the extruder at 19,400 views, unable to locate files on USB at 18,667 and unable to load material at 15,054.

A college instructor who bought a Sketch returned it, reporting that models of real complexity exceeded the printer’s capability in file complexity rather than size, and that tech support seemed inexperienced. A school-scale owner calls a fleet of 25 Sketches plus 8 Method X units collectively bad and the Sketches very slow. On the other side, one classroom owner with two Standards describes them as “largely behaving themselves”, and a STEM teacher with a budget around $1,200 called the Sketch Classroom “limited in features, expensive, but great educational support & cloud tools for printing”. Nobody has published a failure rate for any of this.

Which model this is

This page covers the MakerBot Sketch Standard, catalog number PAFW98, the smaller of the original Sketch family; the Sketch Large has a 220 × 200 × 250 mm build volume and the newer Sketch Sprint a 220 × 220 × 220 mm one. The Amazon listing carries ASIN B0C2996CZ7, but no non-Amazon source maps that ASIN to a specific configuration. Match on the catalog number and bundle contents, not on the color or listing title.
