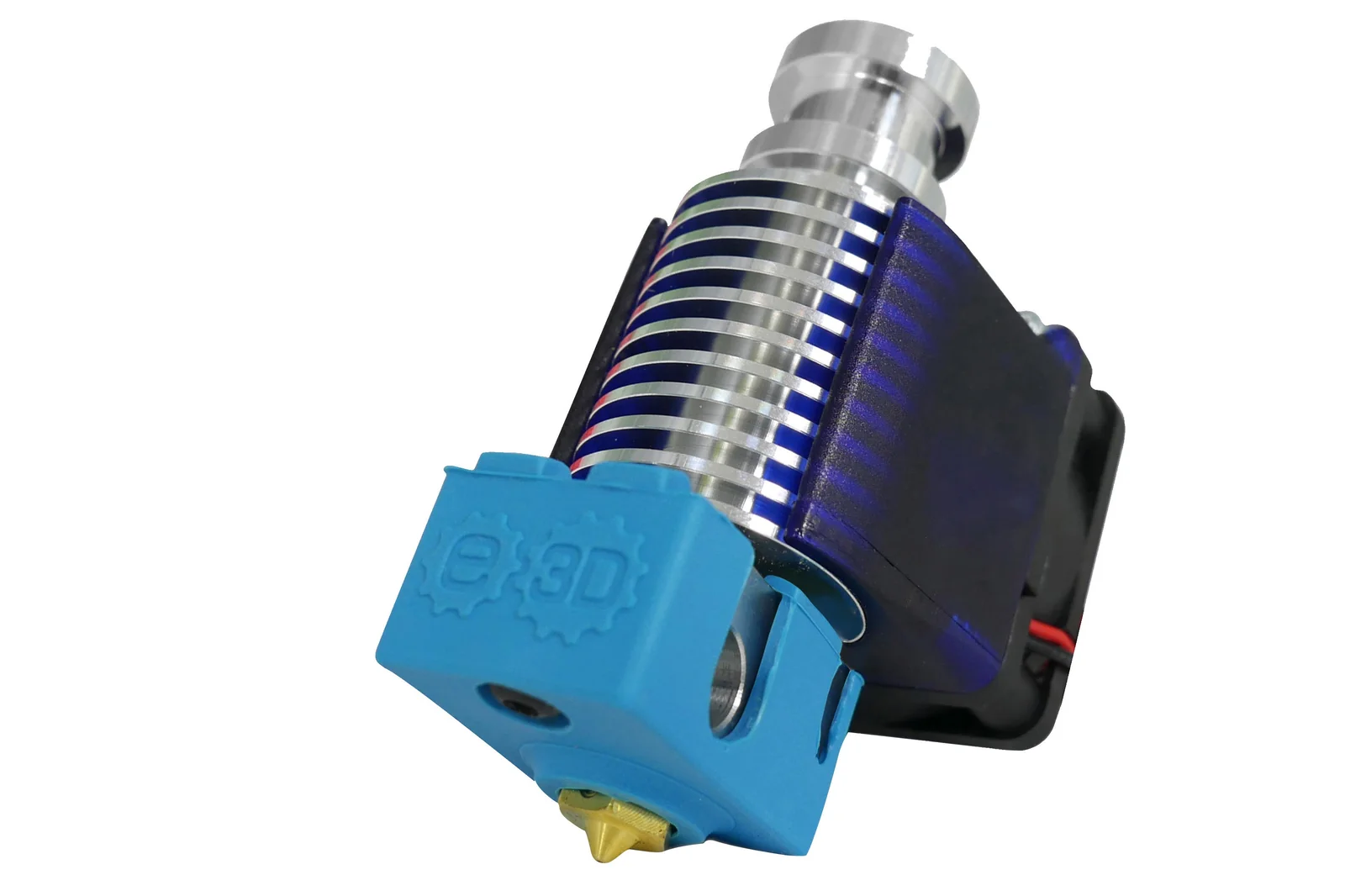

E3D V6 All-Metal HotEnd 1.75mm Universal

E3D V6 All-Metal HotEnd 1.75mm Universal

By E3D · 3D Printing Accessories & Scanners · 3D Printing

  • All-metal heatbreak
  • Max temp 300 C
  • Cartridge-style heater block
  • Groove mount
  • 1.75 mm filament

Lowest price seen
$74.49
from $74.49 at MatterHackers · Checked Oct 25, 2026

New
Used, refurbished, open-box

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Problems, parts and running costs

Summary

A genuine all-metal FDM hotend for printers that already use a V6 groove mount, offered in 12 V and 24 V, direct-drive and Bowden variants. Check voltage, feed path and mount fit before buying; it is not a drop-in for every printer.

Strengths

  • Modular repairability: heater cartridge, thermistor, fan, nozzle, heatbreak, block and sock can be replaced independently, with matching E3D parts stocked by US sellers.
  • Genuine all-metal thermal separation: a polished stainless heatbreak with an isolated melt zone, instead of a PTFE liner running to the nozzle.
  • Broad V6 nozzle selection: inexpensive brass plus coated and hardened options, with dot markings to identify diameter.
  • Published flow baseline: an independent test reports about 10-15 mm3/s at 215 C, useful for tuning maximum volumetric flow.
  • Longevity in at least one documented case: a teardown after more than one year showed a functioning original V6 with a worn nozzle.
  • Genuine stock still available in the US, including a 12 V variant marked “Last Chance” and a configurable full kit.

Weaknesses

  • Heat creep and PLA jams: inadequate cold-side cooling, retraction, bad filament, poor PTFE seating and wrong temperature readings are common causes.
  • Nozzle-to-heatbreak seal leaks if hot tightening is skipped or the nozzle is tightened against the block instead of seating against the heatbreak.
  • Stock flow is modest for large nozzles and fast movement: about 10-15 mm3/s at 215 C.
  • Hot nozzle changes need controlled heat-up, two wrenches and 2 Nm torque; unlike Revo, there is no cold swap.
  • V6 groove mount is not universal fit: adapters, probe mounts, wiring and firmware may be needed.
  • 12 V variant is marked “Last Chance” at one US seller, so exact replacement stock is not guaranteed.

Verified specifications

Identitygenuine E3D V6 all-metal hotend for 1.75 mm filament, with a standard short 0.4 mm brass V6 nozzle and a groove-mount heatsink. E3D V6 Prusa Edition and E3D V6 Gold/Ultimate are different packages; Lite6 has a different thermal design.
Included in the standard full kit1.75 mm heatsink, stainless V6 heatbreak, 0.4 mm brass V6 nozzle, aluminum cartridge heater block, 30 × 30 × 10 mm hotend fan and plastic duct, 12/24 V heater cartridge, thermistor cartridge and extension wire, heat-transfer compound, screws and fittings, silicone sock, and a PTFE feed tube (about 100 mm direct or 800 mm Bowden, depending on variant).
No motorized extruder, stepper, controller, heated bed or carriage mount is included.
Heater30 W nominal, in 12 V and 24 V variants. An older manual references 25 W cartridges; match the voltage printed on the actual component.
TemperatureE3D markets standard V6 up to 300 C, while official V6 Classic support lists 260 C maximum with the sock fitted, 285 C without the sock with an E3D thermistor, and 485 C without the sock with PT100. A plated copper block plus PT100/PT1000 is needed for the higher range.
High-temperature limitsstandard hardened-steel nozzles should not be used above 240 C with the aluminum heater block.
Flow600 mm3/min (10 mm3/s) nominal PLA at 220 C per E3D; an independent test measured about 10-15 mm3/s at 215 C.
Nozzle0.4 mm standard, with optional 0.15, 0.25, 0.3, 0.35, 0.5, 0.6 and 0.8 mm. Brass V6 nozzles are rated 300 C as components but are not abrasion-resistant. Official 0.4 mm V6 nozzles carry three dots.
Hot tighteningheat to 285 C, allow about one minute to equalize, counter-hold the block, tighten to 2 Nm.
Mount and coolinground groove mount; the 30 mm fan must cool the cold side continuously while hot. No printer-specific carriage adapter, probe mount or fan duct is supplied.
Materialsthe all-metal heatbreak suits PLA, PETG, ABS and higher-temperature plastics when the whole printer is compatible; brass nozzles wear with abrasive fills.
Full research notes and sources

Heat creep and PLA jams

E3D’s support identifies inadequate cold-side cooling, retraction configuration, bad filament, incorrectly seated PTFE tubing and incorrect temperature readings among common causes. In a July 2022 r/3Dprinting post, an E3D V6 installed only weeks earlier jammed mid-print despite several attempted fixes; the owner reported success switching from PLA to PETG but did not isolate why PLA jammed. In a May 2023 r/ender3 thread, a user had multiple jams over a month, temporarily completed a Benchy after reducing retract from 2 mm to 1 mm, then clogged again on a filament change; a later update attributed a more durable fix to genuine E3D heatbreak and thermal compound instead of earlier mixed third-party parts. These are self-reports, not proof that all genuine V6s jam with PLA. A March 2020 user reported six months of good all-metal V6 operation before PLA began clogging roughly 40 minutes into prints, while PETG and ASA continued printing; replacement nozzles and fans did not fix PLA. Another owner described a successful 49-hour PLA print before problems. Variability in printers, materials and cooling is the pattern, not a common failure age.

Nozzle changes and upkeep

Regular V6 changes require controlled heat-up, two wrenches with a counter-hold and the official torque; failing to follow the procedure risks leaks or a snapped heatbreak. Retraction tuning can be a nuisance on PLA, especially in long Bowden setups or hot enclosed environments; one customer’s successful 1 mm retract is not an all-printer recommended number. The 30 mm heatsink fan runs while hot and contributes noise; E3D supplies a 30 × 30 × 10 mm fan, but no controlled sound test of this exact hotend alone was found. Part-cooling fans and motor noise should not be ascribed to the V6 fan. Routine ownership means checking fan voltage (12/24 V), duct direction, airflow and thermal paste placement on the heatbreak-to-sink interface. Replace the fan only after diagnosis rather than assuming all jams are fan failure.

Running costs and parts

A complete V6 hotend uses no subscription and no proprietary paid software license. Normal print cost belongs to the host printer’s filament, bed heating, electronics and mechanical upkeep. The 30 W nominal cartridge operates on a temperature-regulated duty cycle; its actual extra electricity use varies with ambient airflow, target nozzle temperature, throughput and chosen cartridge variant. The 30 W number is not a measurement of 30 W continuous wall draw. Even if a 30 W heater ran at 100% duty for 500 hours, it would use 15 kWh, or $3.00 at an illustrative $0.20/kWh. An actual hotend cycles and heater energy is only part of the 3D printer’s electricity.

October 2026 US catalog snapshots, excluding tax and shipping:

  • Filastruder lists the standard 0.4 mm brass nozzle at $6.99.
  • Filastruder lists a 3-pack of V6 silicone socks at $8.99.
  • Filastruder lists the standard aluminum cartridge-style heater block at $12.99.
  • Filastruder lists the stainless V6 heatbreak at $9.99, and a titanium heatbreak at $21.99 as a separate upgrade.
  • Filastruder lists a 30 W heater cartridge at $3.49 promotional entry price, $6.99 list, in 12 V or 24 V.
  • Filastruder lists a thermistor cartridge from $5.49, with a $5.99 displayed default.
  • Filastruder lists a V6 30 mm heatsink fan at $5.49, against a $6.99 crossed-out price.
  • Filastruder lists thermal paste at $0.99 per 1 g sachet.
  • Filastruder lists PTFE feed tube at $6.49 for a displayed length selection.
  • Prusa US lists Nozzle X E3D V6 0.4 mm at $31.49.
  • An illustrative year could be 1 replacement brass nozzle at $6.99 plus 1 sock pack at $8.99, or $15.98 before tax and shipping. A carefully run machine may need $0 in parts in the same period.

Is it worth it?

  • $45-$60 genuine complete kit, correct voltage and credible warranty: good value for a verified V6 replacement or retrofitting an existing groove-mounted printer.
  • $61-$80: fair if the required Bowden configuration, seller support or shipping is genuinely better.
  • Above roughly $80 unassembled, Revo Six at $79.99 is the stronger comparison for compatible mounts and easy nozzle changes.
  • $80-$95 assembled V6: potentially justified for an exact replacement where existing stock wiring and fit must remain unchanged.
  • Under $30 “V6-style” is not necessarily a sale on genuine E3D: the TriangleLab V6-style hotend is shown at $17.99 as a separate brand, and a $45.99 metal-only genuine E3D listing excludes electronics.
  • Above about $95: generally weak for a standard V6 unless specialist seller value or exact parts fit matters.

E3D direct’s UK storefront showed £53.25 for a standard 1.75 mm 24 V variant with a sold-out badge; that is in GBP with destination shipping and tax, not a US delivered price. Printed Solid’s selected 12 V V6 page offers a 1-year standard manufacturer warranty, while E3D direct advertises a 6-month guarantee; treat these as published, inconsistent storefront terms.

Which model this is

This page covers the genuine E3D V6 All-Metal HotEnd for 1.75 mm filament, standard length, with the usual 0.4 mm brass V6 nozzle. It is not Lite6, not the Prusa Edition, not V6 Gold or Ultimate, and not a Volcano or Revo hotend. Volcano long nozzles and Revo nozzle and heatbreak units use different mounting and do not screw into the standard V6 block. E3D introduced this model in May 2014. Revo nozzles and Volcano nozzles do not directly screw into the standard V6 block.
