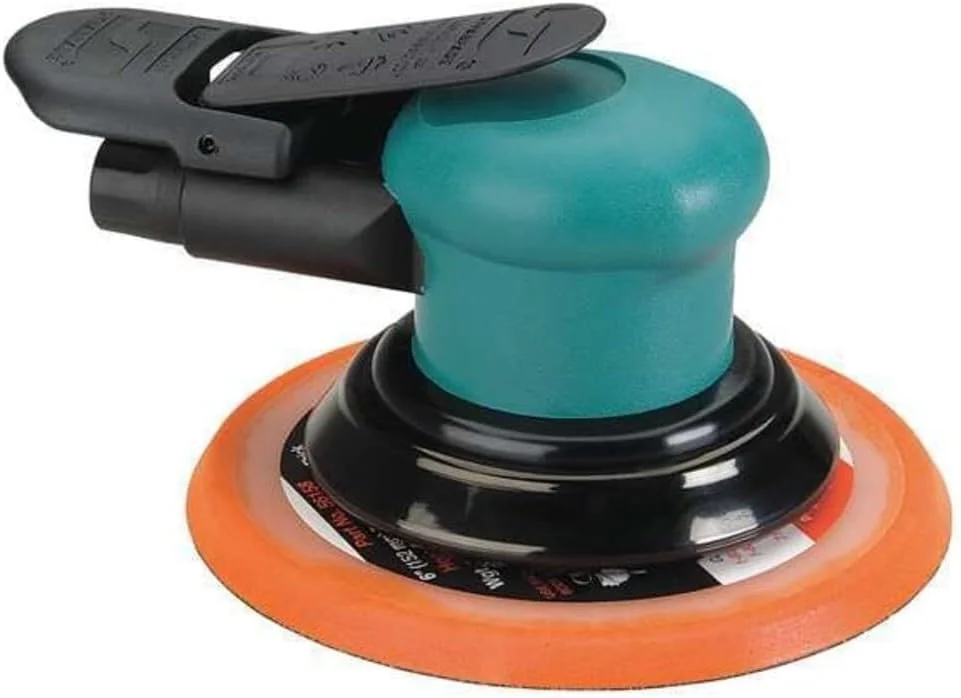

Dynabrade 59040 Non-Vacuum Dynorbital-Spirit Random Orbital Sander
By Dynabrade · Orbital Sanders · Power Tools
- 6 in (152 mm) pad diameter
- 12,000 RPM
- 0.25 hp (186 W) air motor
- 3/32 in (2 mm) orbit
- 1 lb (0.45 kg) weight
Price not listed
- DynabradeView at Dynabrade
- eBay (used) eBay: used, open-box, refurbishedView at eBay (used)
- eBayView at eBay
- FinishingParts.comView at FinishingParts.com
- AmazonView at Amazon (paid link)
Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.
Summary
A US-made pneumatic 6 in (152 mm) random orbital sander for professional shops, built on a 0.25 hp (186 W) air motor and the finest 3/32 in (2 mm) orbit in Dynabrade’s Spirit line. Check your air supply before you buy: it needs a lubricated, filtered compressor line, and the non-vacuum body ships with no dust collection.
Strengths
- US-made, with a current parts manual, exploded diagrams and genuine Dynabrade service parts.
- The registered limited lifetime warranty is unusually long for a shop tool.
- The 3/32 in orbit is the finest in the Spirit line, aimed at ultra-fine sanding and finishing.
- A drop-in motor (59502) lets a shop replace the air motor without a full teardown.
- Vacuum-conversion kits (57122 self-generated, 57123 central) add dust capture later if needed.
- A 1 lb palm tool with a composite grip that insulates against cold exhaust air.
Weaknesses
- No dust collection: the non-vacuum body has no port, so capture needs a conversion kit.
- It needs a lubricated, filtered air supply; contaminated or unlubricated air voids the warranty.
- Air use of 14-16 SCFM needs a serious compressor, a cost most listings leave out.
- The 3/32 in orbit cuts slowly; one experienced owner calls it a waste of time for general sanding.
- Owner threads trace bog-downs to a packed rear-exhaust muffler insert (56054).
- One owner found a full rebuild can cost close to a new sander.
Verified specifications
| Model | Dynabrade 59040, 6 in (152 mm) diameter non-vacuum Dynorbital-Spirit random orbital sander, Ref 59040. |
|---|---|
| Power source | pneumatic, 0.25 hp (186 W) rotary-vane air motor; no electric option. |
| Free speed | 12,000 RPM. |
| Orbit | 3/32 in (2 mm); the product-page feature copy rounds it to 2.5 mm. |
| Pad | 6 in (152 mm) vinyl face with a 5/16 in female thread; a low-profile urethane weight-mated sanding pad is included. |
| Tool style | palm grip with a thumb-control speed regulator; the black throttle lever color-codes the 3/32 in orbit. |
| Exhaust | rear exhaust, non-vacuum, with no dust port. |
| Air inlet | 1/4 in NPT; recommended hose ID 1/4 in (6 mm). |
| Air use | the product page says 14 SCFM (396 LPM); the manual says 16 SCFM (450 LPM). |
| Dimensions | 7 in (178 mm) long, 4 in (89 mm) high. |
| Weight | 1 lb (0.45 kg). |
| Intended materials | wood, metal, plastic, fiberglass, solid surfaces, composites, rubber, glass and stone. |
| Air supply | needs a lubricated, filtered line; Dynabrade recommends a closed-loop system with filter-regulator-lubricator 10690. |
| Warranty | limited lifetime on portable pneumatic tools with registration; 1 year unregistered. |
Full research notes and sources
Which model this is
This page covers the Dynabrade 59040, a 6 in (152 mm) non-vacuum Dynorbital-Spirit sander in the 3/32 in orbit group. The current manual, PD14.22R (June 2016), covers serial numbers 14H1000H and higher and lists 59040 alongside 59030, 59033, 59034, 59035, 59038, 59039, 59043, 59044, 59110, 59113, 59114 and 59165. Don’t confuse it with the 5 in vacuum variants 59038/59039, the 3.5 in 59033/59034, the central-vacuum 59044, the self-generated-vacuum 59043, or the newer Dynorbital-Supreme line.
ASIN B002E93G56.
Air supply and running costs
Dynabrade sells the 59040 direct for $264.00, tax excluded, and lists the 6 in vacuum siblings 59043 and 59044 at $279.00. Shipping is $14.95 flat for orders under $250 and $22.50 over $250 from Dynabrade’s online shop. The tool needs a lubricated, filtered air supply; the manual recommends a closed-loop system and a filter-regulator-lubricator (10690, $407.94) and warns that contaminated air or a lack of lubrication voids the warranty.
Recurring costs add up: 95842 air lube is $27.07, the tune-up kit 96510 is about $166.30, and replacement pads run $35.85 (56182), $30.48 (56197) and $30.16 (56107). A drop-in motor (59502) is $153.25. WOODWEB owners in 2019 revived slow sanders with a 30-pack of exhaust filter inserts 56054 ($18.99 from a parts retailer), and one reports a distributor salesman swapped a motor in about five minutes for about $90 (circa 2011-2012).
Repairs and upkeep
The manual sets a real maintenance routine: every 8 hours, inspect the tool, lubricate the motor with 95842 air lube at 1 drop per minute per 20 SCFM and check pressure against the 90 PSIG limit; every 20 hours, grease the gears and check RPM with a tachometer; every 50 hours, lubricate the planetary gears with 3 plunges of 95544 grease. Dynabrade’s own guidance says air-motor failures are usually traced to lack of lubrication or unclean air.
Repairability is strong for the class: the 59040 maps to replacement housing 58988, the tune-up kit 96510 covers high and medium wear motor parts, and the drop-in motor 59502 avoids a full strip-down. WOODWEB shops report bog-downs every few months despite regular oiling, revived by flushing or new exhaust inserts; one production shop rebuilds its Dynabrade units every year or two under a full-time operator. One user found a full rebuild, with parts, labor and shipping, approaches the price of a new sander, so weigh a rebuild against replacement.
The 3/32 in orbit: who it is for
The 3/32 in (2 mm) orbit is the finest of the three Spirit orbits (3/8, 3/16, 3/32) and is designated for ultra-fine sanding. An experienced forum member (Southern Polyurethanes Forum, 2019) advises against it for general sanding, calling it “a total waste of time” that “cuts extremely slow”, and recommends 3/16 instead, while still saying of Dynabrade “you cant go wrong with either one”. The same thread shows the 59040 in auto-refinish training, where a member scuffed a car roof with a sponge backing pad and 320 grit and called it a “Pretty nice tool” with less vibration than a 3M 6 in dual-action sander.
Is it worth it?
This is an industrial pneumatic tool, so consumer-style value thresholds do not map cleanly. At or below Dynabrade’s direct $264.00 it is reasonable for a professional shop already plumbed to compressed air, given the registered lifetime warranty, full parts availability and the drop-in motor. For an occasional user without an air supply, the compressor, filter-regulator-lubricator and 14-16 SCFM air demand add cost most listings omit.
Sources
Manufacturer:
- Dynabrade 59040 product page
- Dynabrade PD14.22R Dynorbital-Spirit manual (PDF)
- Dynabrade warranties
- Dynabrade 59502 drop-in motor
- Dynabrade tune-up kit 96510 parts list (PDF)
Owner reports:
- Pneumatic palm sanders: what brands, size and orbit work (Southern Polyurethanes Forum)
- Rebuild Dynabrade sander? (WOODWEB Cabinetmaking Forum)
- Dynabrade DA sander? (Southern Polyurethanes Forum)
Independent reviews:
- No instrumented independent test of this model was found.
