DEWALT 20V MAX XR 6 in. Cordless Random Orbital Sander

DEWALT 20V MAX XR 6 in. Cordless Random Orbital Sander

By DEWALT · Orbital Sanders · Power Tools · More from DEWALT

  • 20V MAX XR cordless (tool only)
  • 6 in. 14-hole hook & loop pad
  • 6,000-10,000 OPM, 5 speeds
  • AirLock dust port, up to 95% dust collection
  • TOOL CONNECT chip ready

Price not listed

New
Used, refurbished, open-box

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Problems, parts and running costs

Summary

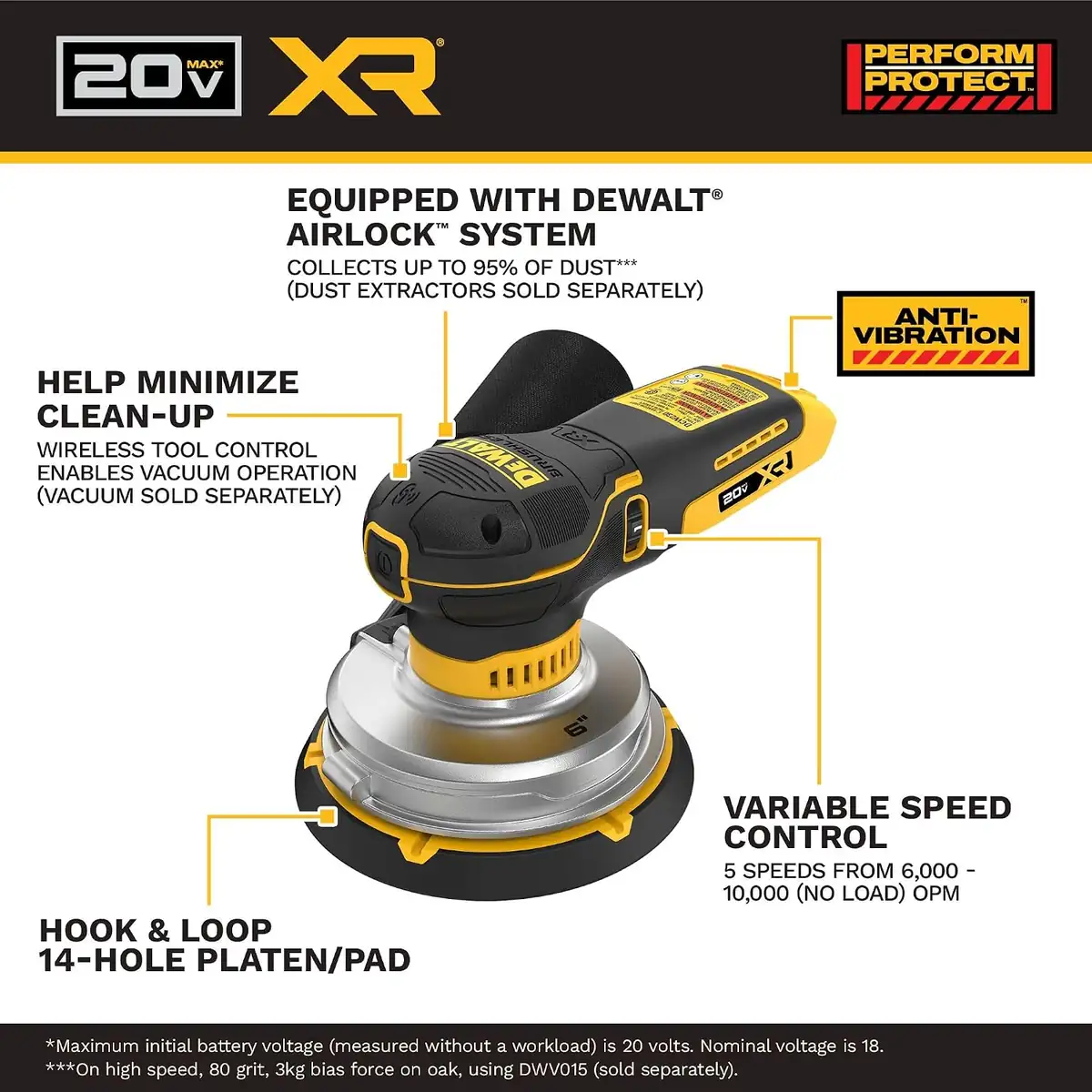

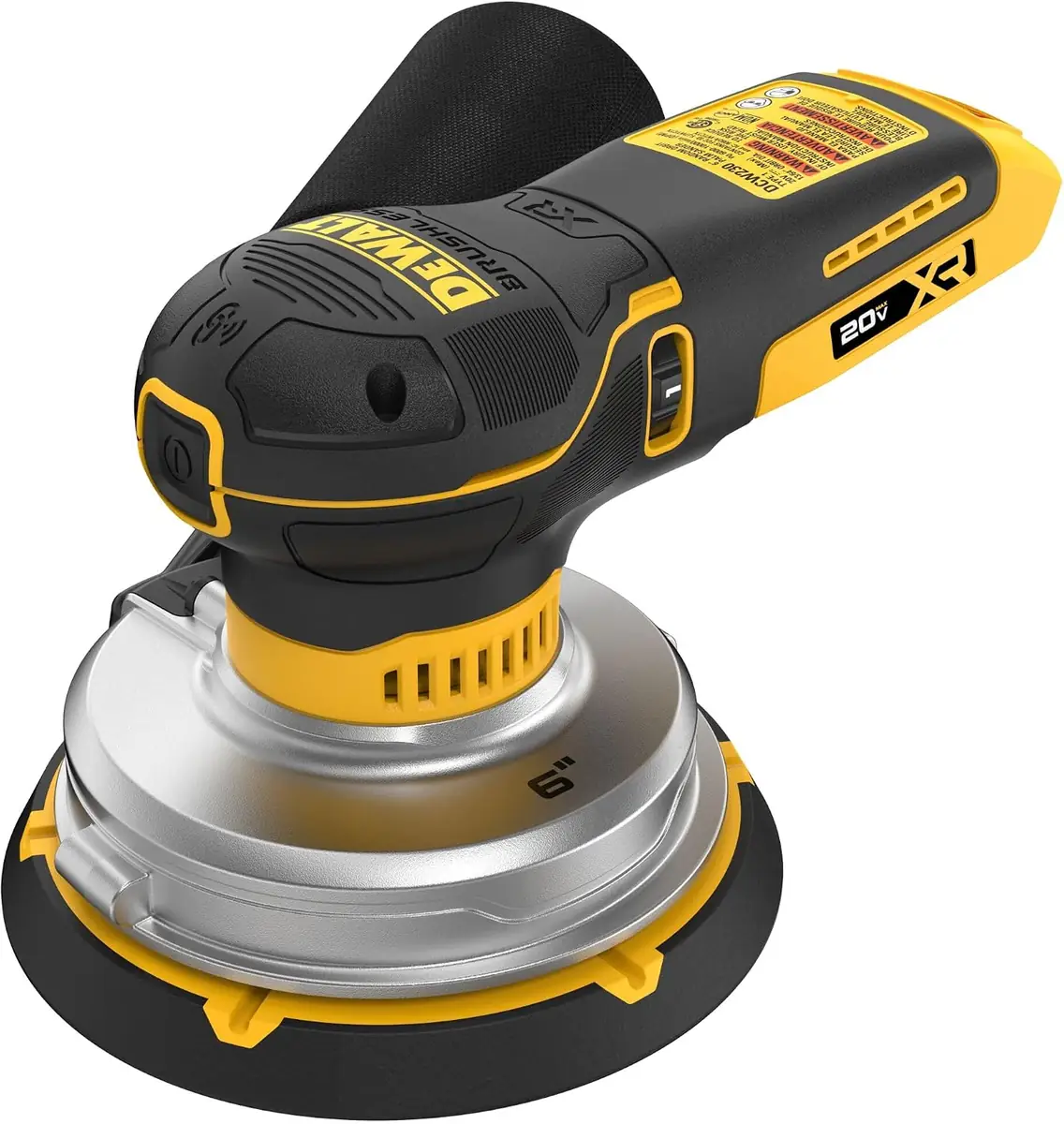

A 6-in cordless random orbital sander for DEWALT’s 20V XR platform, sold tool-only for owners sanding large surfaces like floors, tabletops and doors. Before you buy, know that the product page contradicts itself: the Features list repeats the 5-in model’s figures, so the Overview’s 6,000–10,000 OPM range is the one to trust.

Strengths

  • A 6-in pad removes material faster and suits large surfaces: floors, tabletops, doors, cabinetry.
  • DEWALT claims up to 95% dust collection when you pair the AirLock port with a compatible extractor.
  • Wireless Tool Control starts the vacuum from the sander with one press.
  • The DCE042 Tool Connect chip adapter is included in the box.
  • Owners had been asking for exactly this: a 6-in cordless sander in the DEWALT ecosystem (r/Tools).
  • Sold tool-only, so owners with 20V batteries already in the rack pay for the sander alone.

Weaknesses

  • The battery, charger and a compatible DEWALT dust extractor are all extra costs if you do not own them.
  • The product page contradicts itself: the Features list’s 8,000–12,000 OPM range, “lowest profile 5-in” claim and 50 sq-ft runtime are copied from the 5-in model.
  • No independent test of this model exists; every performance figure is a manufacturer claim against unnamed rivals.
  • The product is too new for owner reliability data — no defect reports, but no track record either.
  • Earlier DEWALT sanders’ dust ports are proprietary; whether this AirLock port takes a standard shop-vac hose without an adapter is unanswered.

Verified specifications

ModelDCW230B, DEWALT’s 6-in (150 mm) random orbital sander on the 20V XR platform, sold tool only.
Pad6-in (150 mm) sanding disc, 14-hole dust pattern, hook-and-loop attachment.
Speed5 variable speeds from 6,000 to 10,000 OPM (no load), per the Overview.
Dust collectionAirLock dust port, rated at up to 95% collection with a compatible DEWALT dust extractor (sold separately).
Vacuum controlintegrated Wireless Tool Control initiates vacuum operation with a button press.
Asset trackingTOOL CONNECT chip-ready, with the DCE042 chip adapter in the box; the chip itself is sold separately.
Battery20V MAX* platform (20V max, 18V nominal); battery and charger sold separately.

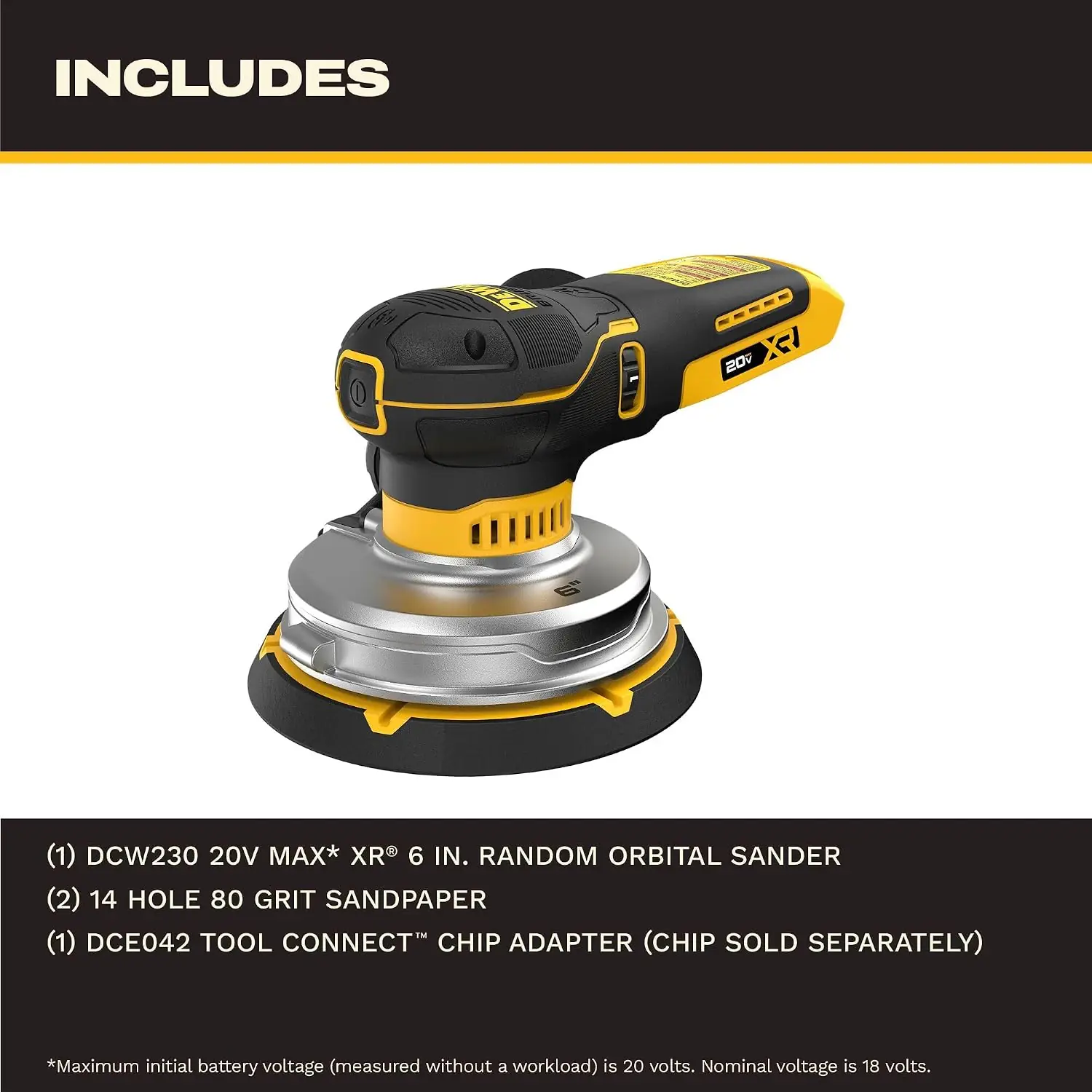

Included in the boxthe sander, DCE042 chip adapter, one 14-hole 80-grit sanding disc, and a dust bag.
Warranty3-year limited warranty plus 1 year of free service; the satisfaction guarantee reads 30 days on the product page and 90 days on DEWALT’s warranty page.
Full research notes and sources

Dust collection and the AirLock port

The 14-hole pad feeds DEWALT’s AirLock dust port, and the company claims up to 95% of dust goes with it when you connect a compatible DEWALT dust extractor. Wireless Tool Control pairs with the extractor so a press on the sander starts the vacuum. Whether this port accepts a standard shop-vac hose without an adapter is unanswered; owners of earlier DEWALT sanders reported needing adapters or rubber tubing.

Battery life and runtime

DEWALT claims up to 200 sq-ft per charge with a DCB2108 battery. A 50 sq-ft figure on the product page belongs to a DCB205 battery on high speed and is copied from the 5-in model; the 6-in’s own runtime claim is 200 sq-ft. Runtime with smaller packs is untested. For reference on the older 5-in DCW210: Tools in Action measured about 45 minutes of runtime on a 5.0 Ah battery at highest speed, while one commenter’s unit slowed and died after about 15 minutes on 2 Ah batteries while he was sanding an entire floor. Battery and charger are sold separately.

Sanding pads and running costs

The hook-and-loop pad is a consumable: replace it when worn through a dealer or an authorized service center, at extra cost. The box includes one 14-hole 80-grit disc, and 6-in 14-hole discs are the ongoing supply. Maintenance is simple: blow dust from the air vents with clean dry air at least once a week, clean non-metallic parts with a cloth dampened with water and mild soap — no solvents, never immerse the tool — and empty the dust bag frequently. No replacement-pad pricing was published, so get a dealer quote.

Is it worth it?

The case is strongest for an owner already on the 20V platform who sands large surfaces and owns — or will buy — a DEWALT extractor. The r/Tools thread demanding a 6-in cordless DEWALT sander shows the want was real. Set any price threshold from live retailer quotes; this research establishes none.

Which model this is

This page covers the DCW230B, DEWALT’s first 6-in (150 mm) cordless random orbital sander in the 20V XR line, sold tool-only and marked New. DEWALT’s pages now brand the line “20V XR” while the graphics say “20V MAX XR”; both names refer to the same 20V platform (20V max, 18V nominal). The Amazon listing is ASIN B0H9Z14V6N. Don’t merge it with the 5-in siblings DCW210B and DCW211B or the older DCW210.
