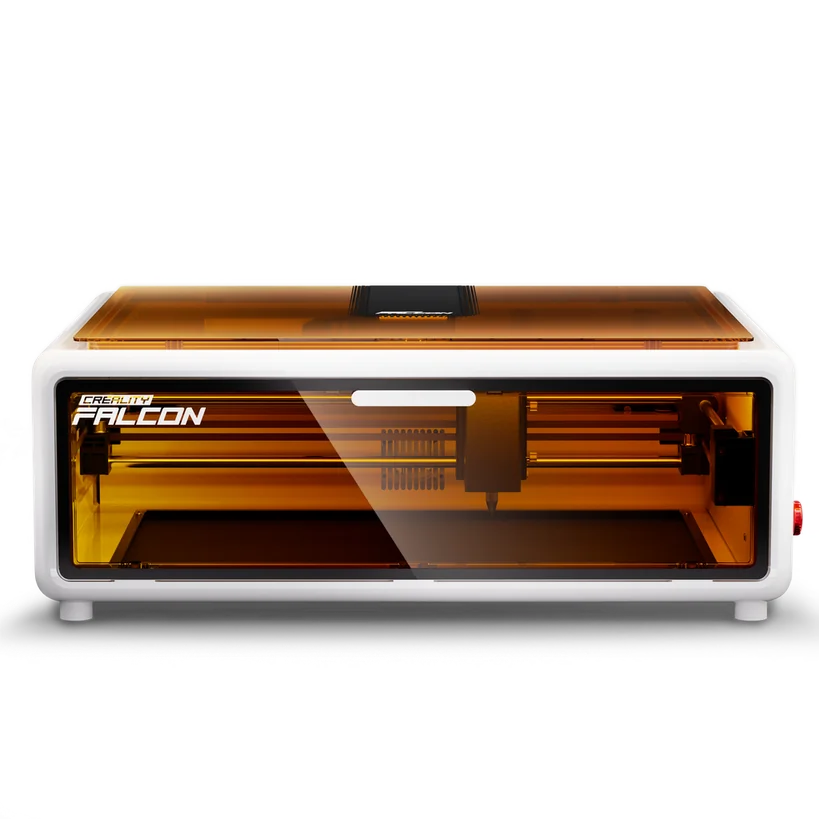

Creality Falcon A1 10W Laser Engraver & Cutter

Creality Falcon A1 10W Laser Engraver & Cutter

By Creality · 3D Printers · 3D Printing · More from Creality

  • 10W diode laser (10000mW)
  • Work area 381 x 305 mm
  • Engraving speed up to 600mm/s
  • Laser spot 0.06 x 0.08 mm
  • CoreXY motion system

Lowest price seen
$466.00
from $466.00 at Creality Falcon · Checked Oct 25, 2026

New
Used, refurbished, open-box

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Problems, parts and running costs

Summary

An enclosed, fully pre-assembled 10 W diode laser engraver and cutter with a 305 × 381 mm bed, CoreXY motion to 600 mm/s, and a built-in camera for drag-and-drop positioning. Check your exhaust plan before you buy: the built-in fan and short hose are weak, and the machine ships without a honeycomb bed.

Strengths

  • Fully pre-assembled; most owners report operational within 30–60 minutes of unboxing.
  • Solid, sturdy build quality and square out of the box.
  • Clean, detailed engraving with fine kerf and tight finger joints.
  • Beginner-friendly safety: enclosure, lid-open stop, key lock, emergency stop.
  • Good value for a 10 W enclosed machine with camera at the $466 direct sale price.
  • LightBurn compatibility.

Weaknesses

  • Weak built-in exhaust fan and short hose; external venting or extraction needed.
  • Camera misalignment near edges; calibration wastes material and stays imperfect.
  • No honeycomb bed included; flashback damages the workpiece bottom without one.
  • No metal engraving capability; metal marking needs a coating or powder.

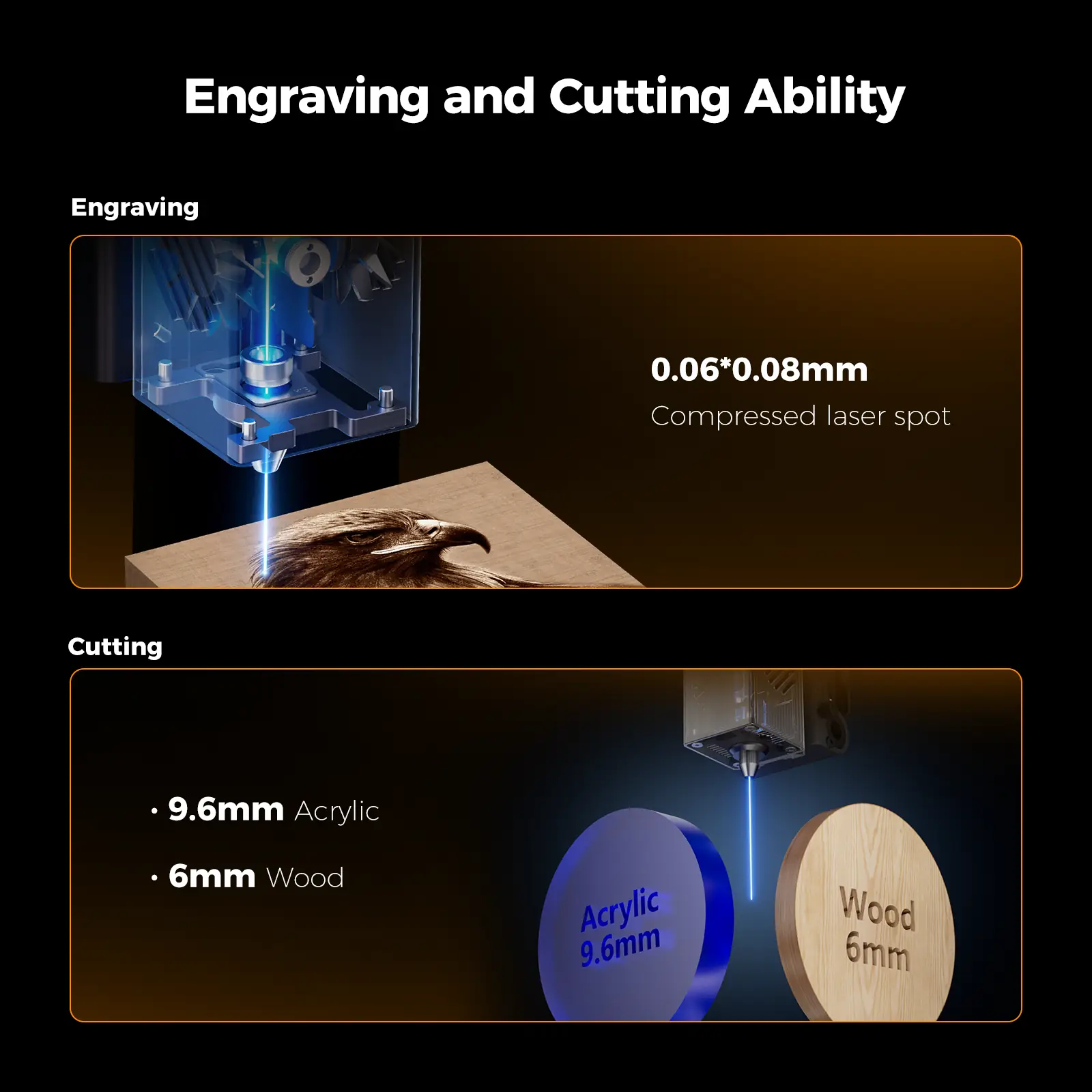

  • Cutting-depth claims (6 mm wood / 10 mm acrylic) exceed hands-on results (clean 1/8-inch plywood).
  • Limited Z-clearance with a honeycomb bed installed; the tray must come out for items taller than about 5 mm.

Verified specifications

ModelCreality Falcon A1 (10 W) diode laser engraver and cutter.
Laser sourcesemiconductor diode.
Laser wavelength455 ± 15 nm per the product page; 445 ± 15 nm per the manual.
Optical power10 W (10000 mW).
Machine power (max)120 W.
OutputDC 24.0 V, 5.0 A.
Input voltage100–240 V~, 50–60 Hz.
Engraving area305 × 381 mm.
Laser spot0.06 × 0.08 mm.
Max engraving speed600 mm/s (CoreXY).
Motion accuracy0.01 mm claimed.
Safety classClass 1 (FDA), fully enclosed, lid-open stop, emergency stop, key lock.
Operating systemWindows / macOS.
SoftwareFalcon Design Space (free), LaserGRBL (free), LightBurn (paid, 30-day trial).
Supported file formatsJPEG, JPG, PNG, BMP, SVG, DXF, etc.
Supported materialscardboard, wood, bamboo, rubber, leather, fabric, acrylic (non-transparent/opaque), painted metal (marking only).
Built-in HD camera with full-frame view, real-time preview, drag-and-drop auto-positioning.
Auto material recognition via QR codes on Creality-certified materials.
Air assistincluded in some bundles; recommended for cutting.
ConnectivityUSB data cable (Type-C); offline engraving via a self-provided TF/USB drive.
Safety certificationsFDA, CE, ROHS, FCC, PSE.
Dimensions567 × 468 × 196 mm; net weight 15.55 kg (≈34 lb).
In the boxmachine, exhaust hose, hose clamp, air assist equipment, silicone tube, power adapter, basswood sheet (300 × 300 × 3 mm), test calibration card, rotary kit connection cable, materials QR code card, product manual V1.0, multi-level focus block, A-to-C cable, anti-static brush, hex wrenches, tweezers, dust-free cloth, spare protective lens, A-to-C adapter, safety keys (×2), user manual. Optional items: smoke purifier, rotary kit, risers, honeycomb board, safety goggles.
Warranty12 months from date of receipt.

Parts, consumables and accessories

Laser module (20 W upgrade)
Replace: as needed

user-replaceable module sold separately; other service parts not documented.

  • OEM Creality Falcon A1 10W W/ 2w IR Laser Module, Intelligent Recognition Basswood $799.12View at eBay
  • OEM Creality Falcon A1 10W W/ 2w IR Laser module, 460*346mm Honeycomb, Basswood $699.17View at eBay
Air assist
Replace: as needed

included in some bundles; recommended for cutting.

  • OEM Creality Falcon A1 10W Laser Engraver And Air Assist (White) $459View at eBay
  • OEM Creality Falcon A1 10W Enclosed Laser Engraver 600mm/s Speed With Air Assist $686.25View at eBay
Full research notes and sources

Cutting and engraving

One owner cut 3/8-inch white oak by slowing the feed, sometimes in two passes. The manufacturer states no cutting depth; a third-party claim of 6 mm wood / 10 mm acrylic single pass exceeds what hands-on testing achieved. Treat it as an engraving-first machine that handles occasional light cutting. It cannot cut transparent or clear acrylic, only dark or opaque, and it cannot engrave or cut metal.

Camera and positioning

The built-in HD camera gives a full-frame view with drag-and-drop auto-positioning and real-time preview. Auto material recognition works via QR codes on Creality-certified materials. Calibration wastes material (one owner reports a 12 × 12 sheet) and positioning stays inaccurate near the edges of the work area, so the frame function is still worth running. Firmware updates have temporarily broken camera and workspace functionality for some owners.

Exhaust, noise and workspace

The built-in fan and roughly 4 ft (≈1 m) hose are too weak for heavy cutting; plan on external venting or a purifier. The machine weighs 15.55 kg net (≈34 lb) and measures 567 × 468 × 196 mm, so it needs a sturdy, permanent spot. The exhaust fan also stops soon after a job, though Falcon Design Space has a setting to extend run time.

Is it worth it?

At the $466 direct sale price (list $599), it is compelling for engraving-first buyers: enclosed Class 1 safety, camera positioning, CoreXY speed, and a pre-assembled setup. Value drops if regular cutting of thicker stock is the job; step up to the A1 Pro 20 W or a higher-power machine. Budget for accessories: a honeycomb bed runs about $99, plus external exhaust or a purifier, safety glasses, and an optional LightBurn license. Maintenance is routine—clean the lens and protective lens, check belt tension, keep rails clean and lubricated, and clean the work area and tray—with monthly overall cleaning recommended. The 12-month warranty runs from date of receipt and requires proof of purchase and an order number. No extended warranty or parts availability beyond module upgrades was documented; the laser module is user-replaceable with the 20 W module sold separately.

Which model this is

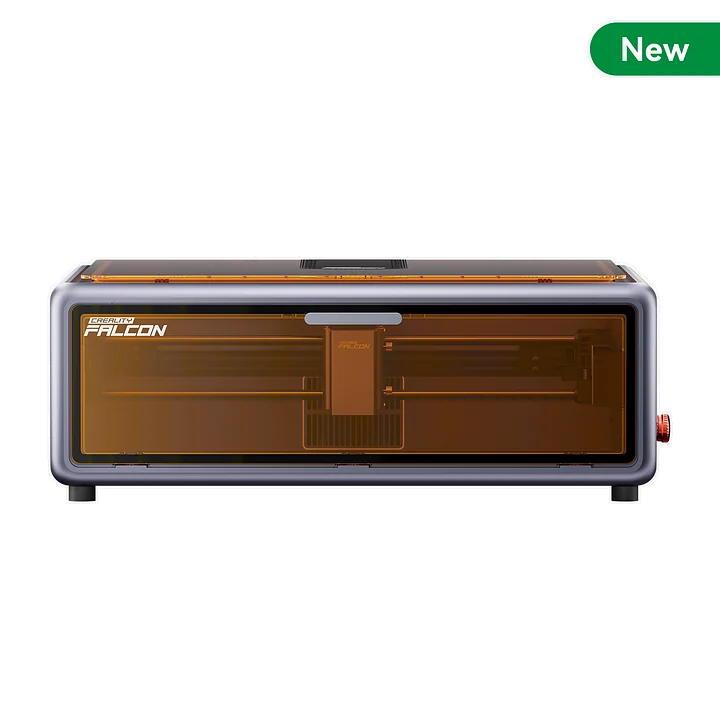

This page covers the Creality Falcon A1 10 W, the enclosed diode model sold in black and white. It is not the Falcon A1 Pro 20 W (dual-laser, 358 × 268 mm work area), nor the open-frame CR-Laser Falcon 10 W or the Falcon2/Falcon2 Pro series. Bundle contents (air assist, TF card) vary by seller, and no hardware revision beyond color was documented.

The Falcon A1 Pro 20 W lists at $879 sale versus $1,099 list for comparison.
