BOSCH GSS20-40 Orbital Sander
By BOSCH · Orbital Sanders · Power Tools · More from BOSCH
- 2.0 A motor, 12,000 OPM no-load speed
- Pad size 4 in. x 4-1/2 in., takes 1/4-sheet paper
- 120 V corded
- Microfilter dust canister efficiency up to 75%
- Length 10 in., width 4 in., height 5.75 in.
Price not listed
- BOSCHView at BOSCH
- The Home DepotView at The Home Depot
- eBayView at eBay
- AmazonView at Amazon (paid link)
- eBay (used) eBay: used, open-box, refurbishedView at eBay (used)
Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.
Summary
A lightweight corded 1/4-sheet finishing sander that runs at a single fixed speed, with a microfilter dust canister and clamp-on paper. Check before buying that you can live without variable speed and with the slower clamp paper changes.
Strengths
- At 2.7 lb it is light enough to sand overhead and along edges without tiring your arms.
- The microfilter canister and through-the-pad collection pull most dust, and the result is much better with a shop vacuum attached.
- It takes standard 1/4-sheet paper you cut from 9 × 11 in sheets, so no proprietary hook-and-loop discs.
- The pad sands flush on three sides, which helps in corners and against vertical surfaces.
- Bosch publishes a spare-parts diagram, so worn parts can be ordered instead of replacing the whole tool.
- Family Handyman highlighted it for extended use in its 2025 palm-sander roundup, noting the low weight and easy-to-empty canister.
Weaknesses
- There is no variable speed: the motor runs at 12,000 OPM and nothing else, so you cannot slow it for delicate work.
- The canister captures up to 75% of dust; fine dust below 1/2 micron still escapes.
- Paper changes use traditional clamps, which owners find slower than hook-and-loop systems.
- Owner opinions on vibration are split: some call it very smooth, others say it shakes a fair amount.
- No carrying case is included.
- It is corded only, so you need power at the workpiece.

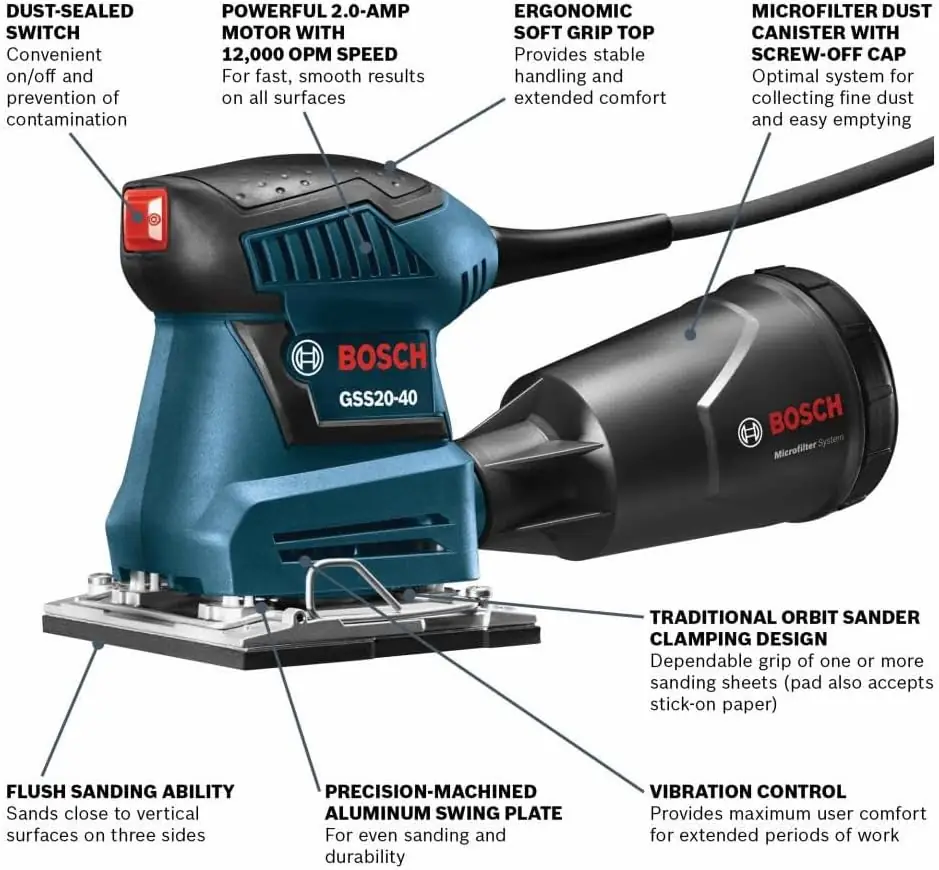

Verified specifications
| Model | GSS20-40, part number 3601BA2110. |
|---|---|
| Power | 120 V, 2.0 A, corded. |
| Speed | fixed 12,000 OPM, no variable speed. |
| Pad | 4 × 4-1/2 in precision-machined aluminum. |
| Paper | 1/4-sheet (4-1/2 × 5-1/2 in), clamp attachment that also accepts stick-on paper. |
| Dust collection | microfilter canister with through-the-pad collection; integrated filter traps particles down to 1/2 micron; canister efficiency up to 75%. |
| Flush sanding | on the front, left and right sides. |
| Weight | 2.7 lb net. |
| Dimensions | 10 × 4 × 5.75 in. |
| Cord | 8 ft, with a lock-on switch and a dust-sealed switch. |
| Vacuum hoses | fits most 22 mm and 35 mm hoses; 1-1/4 in and 1-1/2 in hoses need the VAC024 adapter, and the VAC002 does not fit. |
| Included | sander, punchplate, one sandpaper sheet and microfilter dust canister; no case. |
| Warranty | 1-year limited; made in Malaysia. |
Full research notes and sources

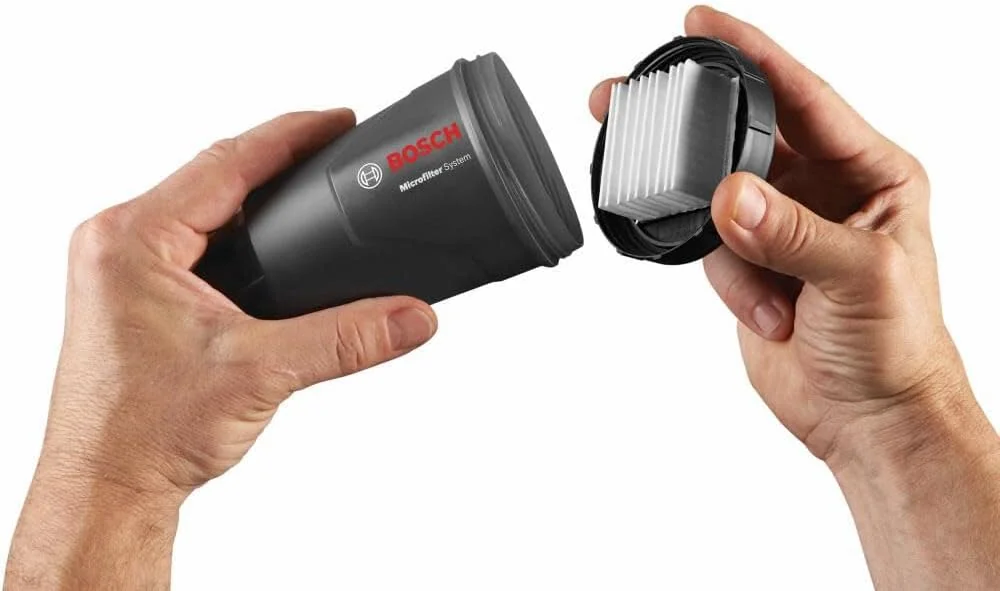

Dust collection and the microfilter canister
The through-the-pad design pulls dust down through holes in the paper and into a screw-off canister, and the integrated paper filter is rated to trap particles as small as 1/2 micron. Bosch puts canister efficiency at up to 75%, so it is not a sealed system: fine dust still escapes, and owners say the collection only really works when you connect a shop vacuum. The sander fits most 22 mm and 35 mm hoses; for 1-1/4 in and 1-1/2 in hoses you need the VAC024 adapter, and the VAC002 will not fit.
Paper, pads and running costs
The pad is 4 × 4-1/2 in and takes 1/4-sheet paper, which you cut from standard 9 × 11 in sheets; the included punchplate lets you punch the dust-collection holes. Because it uses ordinary paper rather than proprietary hook-and-loop discs, consumables stay cheap and easy to find. Clamp changes are slower than hook-and-loop, though, and the tool ships with just one sheet and no case. Replacement microfilter canisters and the optional vacuum adapter are the other parts you may end up buying.
Speed, vibration and owner reports
The motor is fixed at 12,000 OPM, which is fine for finish work but leaves nothing for coarse removal or delicate edges. Owners on Home Depot’s product page are broadly positive, praising the low vibration and the dust extraction with a vacuum attached, while a minority report a fair amount of vibration and wish the tool had variable speed. Nobody has published a failure rate, so treat the vibration complaints as a known split in perception rather than a defect.
No instrumented lab test of this model was found. Family Handyman’s roundup is a hands-on editorial pick, not a measured benchmark, and the sander is absent from the tested lineups at Pro Tool Reviews and Sanderscore. Complaints about Bosch’s random orbit sander on r/woodworking are about a different tool and do not apply here.
Repairs and spare parts
Bosch publishes a spare-parts diagram for part number 3601BA2110 that lists replaceable components: housing, field coil, switch, power cord, ball bearings, fan, brush holder, carbon brushes, dust container and more. That level of parts documentation is unusual at this price and means individual components can be ordered rather than replacing the whole tool. There is no long-term failure-rate data, so treat the tool as repairable rather than proven. The warranty is 1-year limited.
Is it worth it?
At sale prices near $49 (731 Woodworks, March 2025) or the $37.50 closeout ToolSetSupply listed in October 2026, the GSS20-40 is a strong value. In the normal band it runs from $59 at Home Depot to $82.99 at MyToolStore, and around that level the fixed speed and 75% dust efficiency are real trade-offs against rivals with higher OPM, such as the Makita BO4556 (2.0 A, 14,000 OPM). What you are buying here is comfort and cheap consumables, not speed: 2.7 lb, flush sanding on three sides, standard 1/4-sheet paper and documented spare parts.
Which model this is
This is the Bosch GSS20-40 1/4-sheet orbital finishing sander, part number 3601BA2110, a corded 120 V tool. A reconditioned version is sold as the GSS20-40-RT. Do not confuse it with the newer cordless GSS18V-40N or GSS12V-40N, or with the larger 1/2-sheet OS50VC. The Amazon listing for this model is ASIN B01LY8Y2UU.
