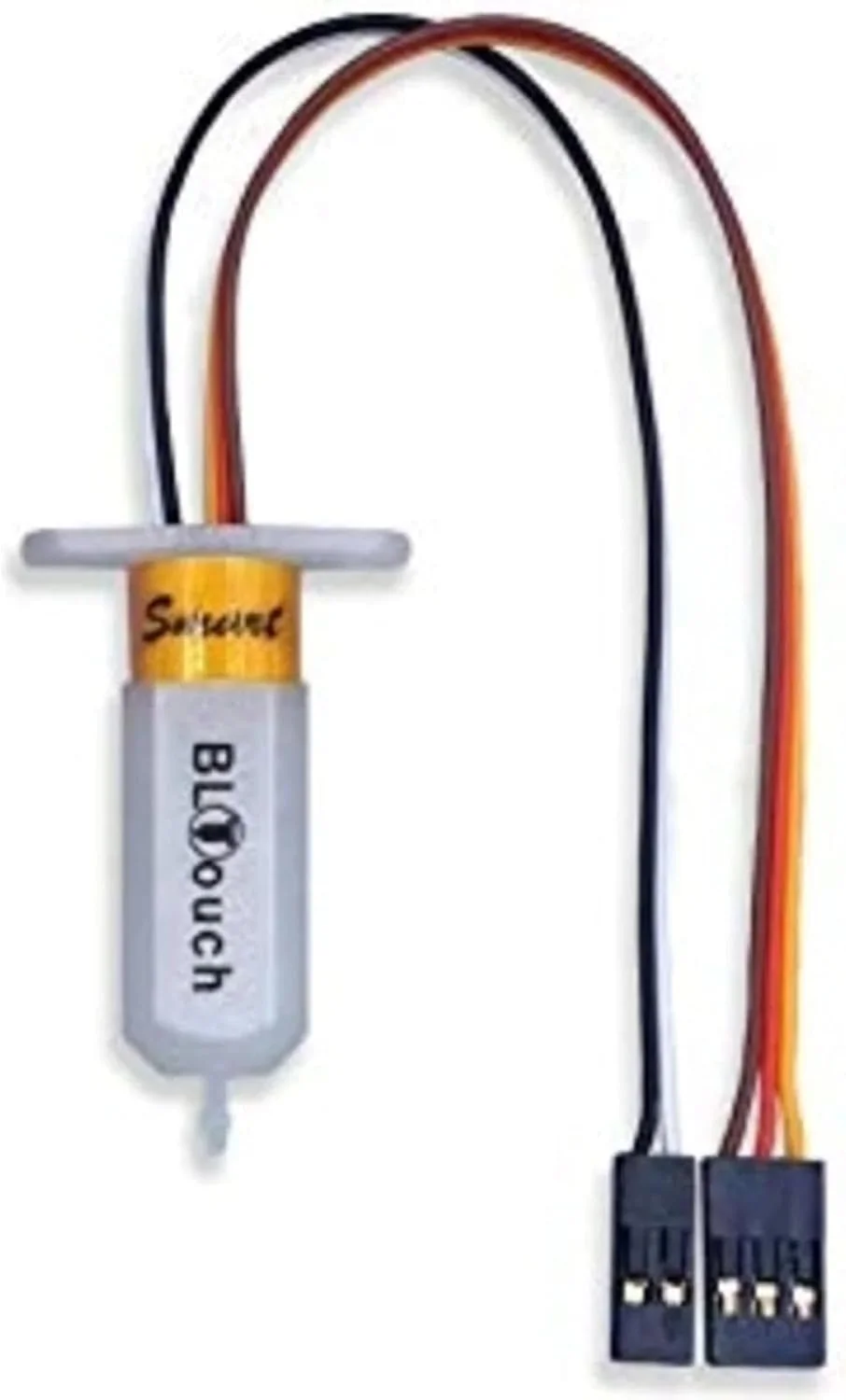

ANTCLABS BLTouch Auto Bed Leveling Sensor

ANTCLABS BLTouch Auto Bed Leveling Sensor

By ANTCLABS · 3D Printing Accessories & Scanners · 3D Printing

  • Repeatability standard deviation ~0.005 mm
  • Standby current <15 mA
  • Self-test runs push pin 2 times on power-on
  • Push pin: engineering plastic (PC)
  • Package: 1 x BLTouch (BLTouch-Smart)

Lowest price seen
$46.99
from $46.99 at TAW Global · Checked Oct 25, 2026

New
Used, refurbished, open-box

Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.

Problems, parts and running costs

Summary

A contact auto bed leveling sensor for 3D printers that works with glass, metal, wood and other beds, with manufacturer-stated repeatability around 0.005 mm. Check the hardware version and authenticity before buying: BLTouch is a family of Classic, Smart and V3.x units, and clones may lack manufacturer support.

Strengths

  • Works with glass, metal, wood, tape and BuildTak beds because it is a contact sensor.
  • Manufacturer-stated repeatability around 0.005 mm standard deviation.
  • Low power draw: below 15 mA standby and below 300 mA for about 100 ms while moving.
  • Compact next to servo-plus-microswitch leveling setups.
  • One owner reported improved print performance on an Ender 3 V2 after installation.

Weaknesses

  • Installation needs firmware changes, wiring and X/Y/Z offset calibration.
  • One owner reported random probing errors with flickering lights, cleared by power cycling and tapping the sensor.
  • Clones can cause troubleshooting problems and may lack manufacturer support.
  • Self-test can fail from wiring defects or dirt on the push pin, with a blinking red LED.
  • V2.0 and earlier may have reduced accuracy with Klipper touch mode.
  • For small beds that level well by hand, the practical benefit may be modest.

Verified specifications

Product typeauto bed leveling sensor for 3D printers.
Sensing methodcontact via solenoid and Hall sensor; not optical, inductive or capacitive.
Manufacturer-stated repeatabilitystandard deviation around 0.005 mm.
Standby currentbelow 15 mA on average.
Moving currentbelow 300 mA for about 100 ms while the push pin moves.
Self-testthe push pin operates 2 times when power is on.
Push pinengineering plastic (PC) on BLTouch Smart V2.x; aluminum on Classic V1.x.
Bed material compatibilityglass, wood, metal, tape, BuildTak and others.
Logic voltage5 V; the manufacturer describes a PCB copper-line cut for 3.3 V logic conversion.
MicrocontrollerAtmel ATtiny13A or ATtiny2313A on V2.2 and later.
ControlRC servo/PWM signal; documented G-code commands include M280 P0 S10, S60 and S90.
Power5 V.

Parts, consumables and accessories

Creality BLTouch kit
Replace: as needed

includes firmware, mounting hardware and cable and is not the same as a bare ANTCLABS sensor; a moderate premium for such a kit is fair.

  • Compatible ANTCLABS BLTouch Auto Bed Leveling Sensor, BLTouch Compatible for 3D Printers $20View at eBay
  • Compatible 3D BLTouch V2.0 Auto Bed Leveling Sensor with Extension Cable, Compatible wit... $24.91View at eBay
Full research notes and sources

Versions and authenticity

BLTouch is a family name covering Classic V1.x, Smart V2.x and V3.x hardware, and a listing may not state the version. Smart V2.x introduced red and blue LEDs for wiring defects and a plastic push pin; V3.x improved timings and PWM and has a push-pin stroke 1.6 mm longer than the previous version. Genuine units carry a QR code on the PCB, while clones may lack it and may not support all functions or Klipper queries. Creality sells BLTouch kits with firmware and mounting hardware that are not necessarily the same as a bare ANTCLABS sensor. The manufacturer manual index lists separate manuals by version, so matching the manual to the hardware matters.

Setup, firmware and reliability

Setup is the real work: firmware support, correct wiring and offset calibration. The Klipper documentation describes verification procedures for the control pin, sensor pin and probe, and documents recovery from inconsistent states with a reset command and, in some cases, adjustment of the top screw or magnetic core. BLTouch V3.0 and V3.1 may need probe-with-touch-mode in some configurations, and V2.0 and earlier may have reduced accuracy with that setting. Maintenance is light but real: keep the push pin clean and grease-free, since dirt can prevent deployment. The plastic push pin is replaceable and some kits include a spare probe, but the manufacturer states that spare parts and cables are not provided to 3D printer makers. No warranty period for the BLTouch-Smart was found in the sources checked. No dimensions or weight were published for the sensor.

Repairs and upkeep

There is no subscription or consumable lock-in. Ownership costs are spare push pins or probes, extension cables and mounting hardware; some kits include a spare probe. Setup cost is firmware and configuration time. The plastic push pin is the main wear item and is replaceable. Dirt on the pin is the most common preventable cause of self-test failure.

Is it worth it?

At about $35 for the genuine V3.1, BLTouch is a low-cost upgrade where bed compensation is needed, especially for larger or warped beds. Clones may cost less but carry higher troubleshooting and support risk. For small beds that level well manually, the practical benefit may be modest. Filastruder listed the genuine V3.1 at $34.99 and showed it sold out at the time checked.

Which model this is

This page covers the BLTouch-Smart auto bed leveling sensor from ANTCLABS Inc. of Seoul, sold under the package name “1 x BLTouch (BLTouch-Smart)”. BLTouch is a family name spanning Classic V1.x, Smart V2.x and V3.x hardware, and the exact hardware revision of a unit identified only by ASIN B01FFV2TOS cannot be determined from the sources checked. Do not confuse it with clones such as “3D Touch” or “TL Touch”, which the manufacturer identifies as imitations.
