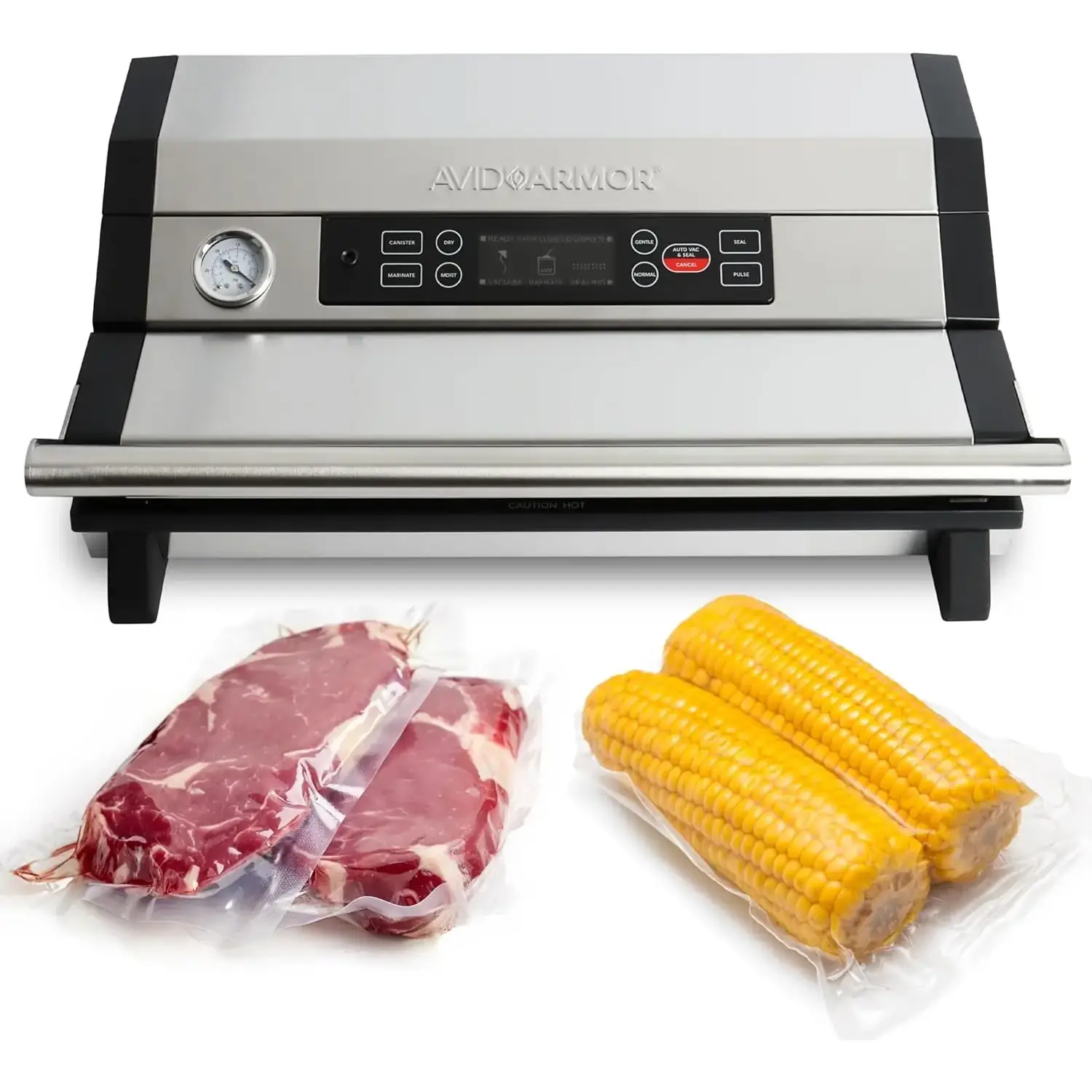

Avid Armor A420XL 16-Inch Vacuum Sealer

Why the 16-inch bar matters

Most external vacuum sealers target ordinary household-size bags. The A420XL instead puts its headline feature at the end of a relatively wide countertop enclosure: a heat bar spanning 16 inches. This is a meaningful difference if you portion oversized cuts of meat or regularly seal large quantities of food. It does not make the machine a chamber sealer or guarantee every wide bag on the market will work. It increases the available length of heat bar across which the mouth of a suitable embossed bag can be placed.

Avid Armor specifically advertises sealing two quart-size bags side by side. That may help when packaging many individual freezer portions, because one heating operation can close both bag mouths if they are positioned correctly. The claim is for the manufacturer’s advertised workflow, not a measured doubling of output. Handling both open ends without wrinkles, ensuring each mouth reaches the suction channel and checking that each bag forms an adequate seal take time. When the film is slick or the contents are irregular, carefully preparing two bags can offset some theoretical time savings.

The other application is a single wide bag. A larger cut of brisket, a rack of ribs or bulk dry ingredients may fit without dividing the portion into multiple narrow pouches. Actual usability depends on the bag’s internal dimensions, the sealing margin and how bulky the food becomes once packed. A 16-inch bar does not mean the usable opening can be the bar’s entire nominal length with no room for alignment. For expensive or awkward contents, check the bag mouth before purchasing a large roll.

One manufacturer’s own buyer described packaging chicken wings in groups, and another said the wider opening had been useful for larger cuts. A discussion on the Hunt Talk forum also contains a user who said the A420XL could handle two quart bags or batches of meat. These are ownership observations, not laboratory tests. Their usefulness lies in confirming how buyers approach the unusually wide format rather than proving a precise bag-per-hour rate. No independent instrumented trial of simultaneous sealing under a common load was found.

The wide format has trade-offs. A longer heater may require good pressure distribution along the whole sealing area. If the bag lies unevenly or touches food residue near a corner, a finished seam can have weak spots that are not visible at a glance. A physically bigger device is also harder to leave on a crowded counter than a compact 11-inch sealer. The manufacturer does not publish a verified exact A420XL body footprint and opened-lid clearance in the checked specifications, so measure the area where you intend to work rather than relying on pictures.

Seal construction, vacuum performance and noise

There is a critical terminology issue in the product copy: “Double Seal Strength” is not the same thing as an independently confirmed two-line heat seal. Avid Armor uses the phrase on the A420XL page but does not give a clear drawing of two individual heater wires or a stated finished width and spacing for each welded seam. It might describe a real two-line feature, a single wider seam or simply the strength of the sealing process. The available first-party text does not resolve that question.

It is easy to conflate this machine with the older A420. Avid Armor’s earlier comparison chart explicitly describes the standard A420 as a 12-inch appliance with two 2.5 mm weld lines, a 230 W motor and a double-piston pump. None of those exact details appears as a confirmed A420XL specification in the checked product information. The suffix XL establishes greater width, not that every inner component or function remained unchanged.

A 2026 discussion at the AmazingRibs Pitmaster Club raises this same concern. One shopper wanted a wide vacuum sealer that could also make two separate seals, but found the A420XL’s advertised “double strength” language insufficient and suspected that it might not produce two distinct lines. That was a reader’s uncertainty, not a teardown or physical test. It does, however, identify the exact question a prospective buyer should ask the manufacturer: show a sealed A420XL bag with both independent welds visible and confirm the spacing and thickness. Until that is available, the two-line design must remain unverified.

A double seam can matter with long sous-vide sessions or freezer storage if one narrow defect affects one weld and not the other. But the word double alone does not guarantee higher leak resistance. Heat time, bag material, film folds and contamination all affect the result. Even two perfect heat lines cannot keep air out of a bag punctured by a bone. No independently measured A420XL tensile-seal result, water-leak test or controlled freezer-retention study was found. The fact that its advertised sealing result is described as strong should not be converted into measured durability.

The A420XL’s vacuum power is also poorly characterized in public model-specific material. Avid Armor describes a capable suction machine but does not provide a standardized achieved vacuum pressure, airflow volume per minute or full-cycle stopwatch result under a documented test. The 16-inch bar is visible in the specifications; pump strength is not independently calibrated.

Noise has the same evidence gap. No exact-model test describes A420XL dBA at a stated microphone distance or the audible pitch of its pump. A high-power external sealer is not necessarily quieter because its motor is larger. Without measured sound-pressure levels and a comparable protocol, any precise sound claim would be invented. A shopper sensitive to a shrill motor should look for a real matched-volume demonstration or test the unit under the seller’s return policy when stock reappears.

Avid Armor emphasizes bulk workflows, but it does not provide a verified A420XL cooling interval, maximum consecutive seals or documented thermal shutdown behavior on this page. Figures such as 100 consecutive seals appear in the manufacturer’s information for the older A420, and should not be transferred to the XL without confirmation. A longer bar and larger roll compartment could make packaging more convenient, yet a heavy-duty label does not establish unlimited production duty.

Bags, large rolls and moist foods

The A420XL is an external-suction machine, so it needs channel-style or embossed bags for reliable automatic air extraction. The little ribs and textured areas in that plastic leave a path for air to move toward the vacuum channel when the lid clamps the open end. Smooth chamber pouches, which depend on the pressure changing around their entire surface, can trap air when used in an ordinary suction machine. The A420XL has no confirmed requirement for a proprietary bag cartridge, but that does not mean every bag thickness or specialty material seals equally well.

A standout storage claim is the 50-foot roll capacity. The manufacturer explicitly says the A420XL can hold longer rolls in its built-in bay and use a sliding bag cutter to prepare custom-length pieces. If you make many freezer portions, fewer roll changes are convenient. But capacity stated as a length is incomplete without details about the roll’s outside diameter, core, width and film thickness. A 50-foot reel made from thick plastic can be bulkier than a shorter reel of thinner material. Do not assume any generic roll carrying that length label will physically fit.

Likewise, a built-in cutter is not an automatic dispensing mechanism. Pull out the length you need, slide the blade manually and make the first heat seal before filling the pouch. When using an extra-wide roll, check that the plastic is flat across the heater and does not bunch at the ends. Some bulk bags require a longer empty sealing margin because bulky food pushes the film against the lid as the vacuum tightens. Waste from cutting bags too short can offset any saving from buying film by the large roll.

The advertised Dry and Moist modes are useful for choosing settings around different food surfaces. The Pulse button adds control for fragile items and can stop extraction before a loose bag crushes soft contents. Adjustable seal time lets the user respond to differences in compatible film thickness, but more heat is not always better. Excess time may distort plastic or weaken a seam. No public exact-model guide was found specifying which duration is approved for every film gauge, so use the manufacturer’s compatible materials and the instructions shipped with the actual unit.

Liquid is a more serious limitation. A vacuum sealer that evacuates a bag through its opening can pull fluid toward the pump when the contents contain free-flowing soup or marinades. The A420XL has an accessory port for compatible canisters, but that does not make the flexible-bag path safe for unlimited liquid. For a liquid-rich meal, cool and pre-freeze a portion before bagging or use an appropriate vacuum-rated rigid container with a verified connector. Keep the bag mouth clean and dry, and check both edges of a wide seam for trapped food particles.

Avid Armor includes a hose and advertises canister and marinate use. Its item listing does not include a matching canister; a compatible container is a separate purchase. A visually similar valve on a different brand’s jar may not form a seal with the supplied hose, so confirm the adapter before spending money on extra containers. No independent A420XL container evacuation-time test, or reliable list of third-party canister couplings, was established in the sources.

The external machine is still designed to prepare bags for chilled, frozen or sous-vide foods, not to make improperly stored food safe. Vacuum packaging removes air but does not sterilize contents. Follow proper chilling, freezing and sous-vide temperature practices, particularly for meats and moist dishes. Check any filled bag for air returning after the seal cools before committing expensive bulk portions to storage.

Service parts, warranty and buyer reports

One reason to take Avid Armor more seriously than an anonymous importer is that it publishes an exact-model A420XL replacement gasket set. The company’s accessory page lists two foam vacuum-chamber gaskets for $13.00, specifically naming A420XL as the compatible machine. Gaskets are wear items: pressure and repeated closure can compress the foam until a little air leaks around the chamber. A leak reduces effective suction even with a functioning pump. Being able to order an exact-fit pair is a practical advantage.

The gasket product page has an editorial copy error worth noting. Its headline and compatibility section identify the A420XL, but an unrelated sentence mentions a different Avid Armor model. The explicit compatibility statement and product title are stronger than that stray marketing line; if the part arrives with an unclear label, verify that it matches A420XL before installing it. Another reader reported receiving only one gasket when the offer listed two, then added that support responded and arranged the missing one. This is one order-service experience, not evidence that the gaskets or machines commonly fail.

The manufacturer also maintains a wider suction-sealer replacement-parts catalog. However, that does not mean every internal A420XL component is publicly purchasable. The checked pages did not establish an exact A420XL pump, electronic control board, heat-strip assembly, latch or internal protective tape being available individually. A buyer should not substitute a gasket intended for the older A420 merely because both models share the same family name. Their different heat-bar lengths and physical formats make assumed component fit particularly risky.

Avid Armor’s general written policy covers manufacturing defects for one year from the purchase date. The company may repair or replace an eligible product at its discretion, and it says accepted warranty claims include ordinary ground transportation to and from the warehouse. The warranty is limited to authorized-seller purchases and the original US buyer with proof of purchase. The seller says covered machines are already registered; there is no need to assume a registration step extends the ordinary warranty.

That coverage should not be confused with a maintenance program. The policy excludes wear components such as gaskets, sealing wire, Teflon heater tape and related items, as well as components that have been altered or tampered with. Paying for a replacement gasket is normal even when an appliance has a year of coverage against manufacturing defects. Opening an electrical housing to install an improvised heater part may jeopardize warranty rights and present a safety risk. Use the maker’s service route for suspected internal electrical faults.

Direct-purchase returns are discussed separately from the warranty, with a 30-day return window subject to the manufacturer’s conditions. A marketplace or reseller can have different return rules. A package described as open-box also needs separate condition and support checks. Retain the receipt and any written warranty terms for the specific purchase, especially if the model becomes available again only through nonstandard channels.

The A420XL has more owner testimony than many private-label machines but far less than established mainstream models. Manufacturer-hosted reviews include praise for portioning batches of poultry and for the pulse and integrated roll functions. An owner at Hunt Talk reports useful two-bag operation and a solid feel. Those accounts provide plausible usage examples. They are not independently controlled comparisons of vacuum pressure, noise, reliability or long-term replacement-part availability.

Negative signals require similar care. A Pitmaster Club discussion questions the actual double-seal construction and points to complaints seen on another retail platform about insufficient suction. The thread does not show a reproduced A420XL pressure test and its author had not reported inspecting the weld geometry firsthand. Do not convert an individual’s research concern into a verified defect or extrapolate any failure percentage. For a buyer, the practical response is to request clear evidence of two heat lines and test the specific unit while it can still be returned.

The main impediment is straightforward: Avid Armor’s official A420XL product page is marked sold out. Its direct product listing displayed $249.00 when checked, with a crossed-out $399.00 comparison figure. A displayed price does not prove a machine can be purchased and delivered, and a crossed-out reference value does not verify that buyers regularly paid the higher amount. The manufacturer also lists the A420XL as sold out in its broader suction-sealer catalog. No confirmed alternative in-stock US checkout offer was established in this research.

At a substantial premium over many standard-width machines, the A420XL needs a specific use case. It makes the most sense if you routinely require unusually wide channel bags, process large cuts or expect to save effort by presenting two quart-size pouches to the bar together. Someone sealing one small bag at a time gains less from the larger format. The exact-fit gasket supply and US warranty route are tangible benefits, but they do not resolve the unmeasured motor performance or the unfinished double-weld question.

Compare its purchase cost with the features you actually need, not with the advertised percentage discount. A 12-inch machine with independently documented pressure or readily available replacement parts can be less expensive and easier to store. At the other extreme, a chamber sealer may be more appropriate for large quantities of liquids, though it comes with restrictions on the size of food that fits inside the chamber. A420XL occupies a different space: it prioritizes width while retaining the limitations of external suction.

The warranty does not eliminate the availability issue. If the manufacturer has stopped stocking the machine for a long period, the fact that gaskets are listed for sale today does not guarantee support inventory years later. Nor can we assume a new revision would use exactly the same parts.

Without independent pressure and endurance data, assigning a numerical performance score would be artificial. A reasonable comparison test should measure vacuum in a fixed container, monitor noise at a specified distance, run repeated seals with a defined pause, and inspect the finished seam pattern. It should also test two bags at once against the same pair sealed separately, rather than claiming doubled throughput from a wide bar alone. Until those observations exist, this is a useful specialist format with clear documentation gaps.

It fills a genuine category gap in extra-wide external sealers, and it has a credible exact-fit gasket listing. But anyone prioritizing a verified pair of individual weld lines should obtain that confirmation first; the manufacturer’s wording is not sufficient.

Which model this is

It is not the standard A420, which has a 12-inch bar and appears in an older manufacturer comparison table with specific 230 W and two 2.5 mm seam data. Nor is it the A100 Gen 2. Those sibling specifications have not been verified as applying to the XL.

There is no independently established official ASIN for the exact A420XL in the evidence used here, so no Amazon identifier is assigned. The manufacturer’s own A420XL name and product URL are the identity anchors. Match them to the rating plate, supplied accessories and warranty documentation when assessing an actual offer.

Sources

Manufacturer:

• Avid Armor A420XL exact-model product page
• A420XL two-gasket replacement pack
• Avid Armor limited warranty, returns and US support
• Avid Armor suction-sealer inventory
• Suction-sealer factory replacement parts
• Historical A420 versus A100 comparison — not XL specs

Retail and owner reports:

• A420XL listing and buyer feedback on Shop
• A420XL owner’s use for bulk food and paired quart bags (Hunt Talk)
• Questions about A420XL double-seam geometry and suction reports (Pitmaster Club)
