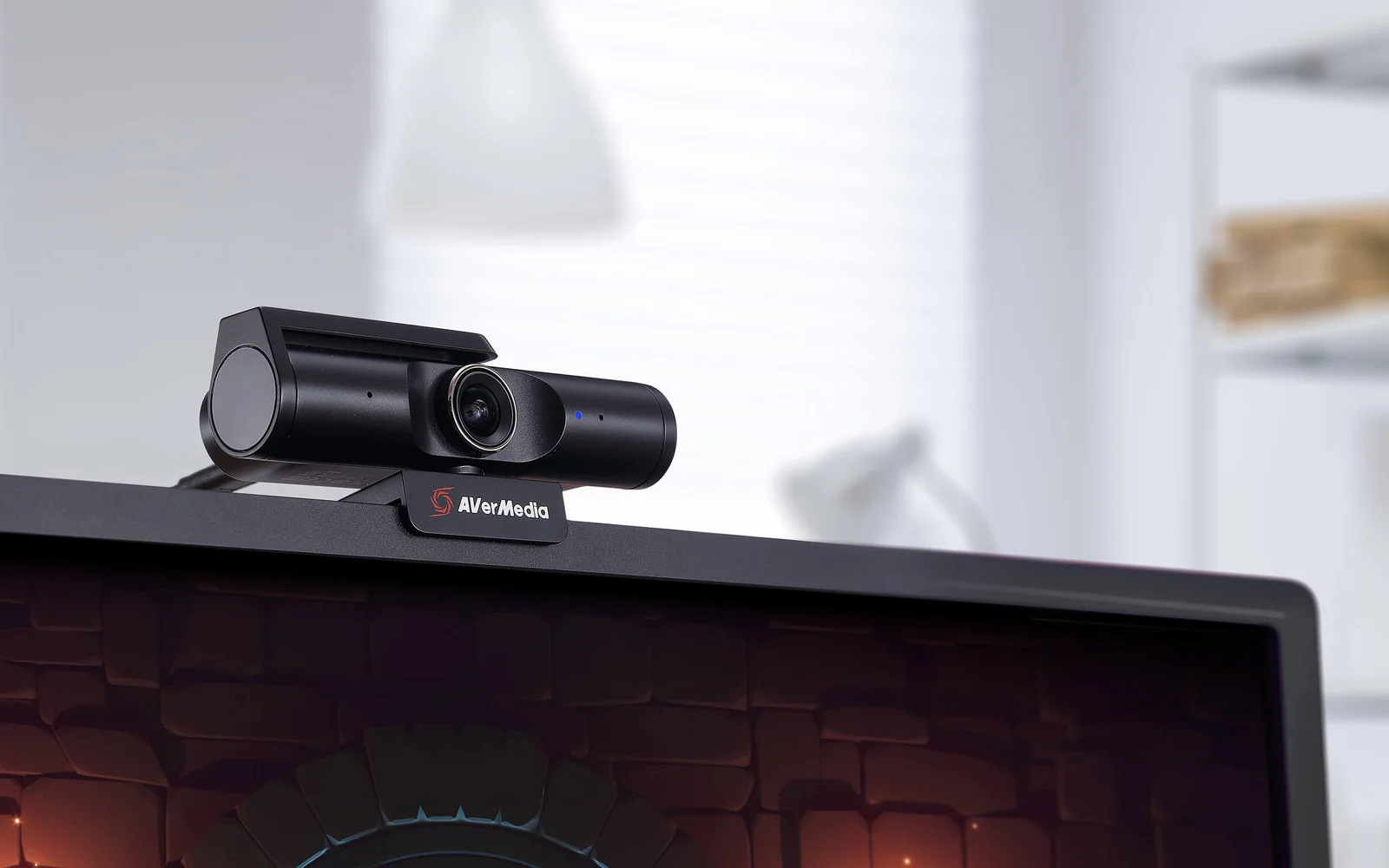

AVerMedia Live Streamer CAM 513
By AVerMedia · Webcams · Desk & Streaming Setup
- Image sensor: Sony Exmor R 4K CMOS, 8 MP
- Max resolution: 3840x2160 at 30 fps
- Lens: F/2.8 fixed focus, 94-degree diagonal FOV
- Minimum illumination: 1.4 lx
- Dimensions: 130 x 52.6 x 29 mm (without base)
Price not listed
- AVerMediaView at AVerMedia
- WalmartView at Walmart
- eBayView at eBay
- AmazonView at Amazon (paid link)
- eBay (used) eBay: used, open-box, refurbishedView at eBay (used)
Stores are listed in a fixed order, never by price or commission. Prices are snapshots. Check the current price with the store.
Summary
A USB 3.0-only 4K webcam for desktop calls and streaming on a PC with a free USB 3.0 port and good lighting. Check your port and your lighting before buying: AVerMedia states the camera does not support USB 2.0, and its quick guide recommends a 500+ LM main light.
Strengths
- 4K at 30 fps and 1080p at 60 fps from an 8 MP Sony sensor.
- 94° field of view with fixed focus and a 10 cm minimum distance.
- Stereo microphones, swivel-arm privacy shutter, 360° swivel, flexible base and 1/4-inch tripod thread.
- UVC support plus CamEngine ePTZ, AI tracking and up to 15 saved custom shots.
- Firmware and CamEngine downloads are provided by AVerMedia.
Weaknesses
- USB 3.0 only; AVerMedia documents no USB 2.0 support.
- Fixed focus with a 50–200 cm working range, not autofocus.
- 4K is limited to 30 fps; 60 fps is available only at 1080p.
- macOS may show video delay that needs a 200–1000 ms audio delay.
- Manufacturer recommends a 500+ LM main light; low light can cause noise and grain.
- CamEngine features need more CPU, GPU and RAM than the webcam’s base requirements.
Verified specifications
| Model | PW513, sold as Live Streamer CAM 513. |
|---|---|
| Sensor | Sony Exmor R 4K CMOS, 8 MP. |
| Video | 3840x2160 at 30 fps; 1920x1080 at 60 fps. |
| Lens | F/2.8, fixed focus. |
| Field of view | 94° diagonal. |
| Minimum illumination | 1.4 lx. |
| Working distance | 50–200 cm (1.64–6.56 ft); minimum 10 cm (3.94 in). |
| Video modes | MJPEG and UYVY. |
| Audio | stereo built-in microphones. |
| UVC | supported. |
| Privacy shutter | swivel-arm. |
| Swivel | 360°. |
| Tripod thread | 1/4 inch. |
| CamEngine | manual zoom 1x–4x, snapshot, ePTZ with AI body or speech tracking, up to 15 saved custom shots. |
| Firmware | 0.0.8000.46 fine-tunes default image settings; updater 0.0.8000.48 for Windows and macOS. |
| USB | USB 3.0 only; USB 2.0 is not supported. |
| Windows requirements | Windows 10; CPU 3.2 GHz Intel Core i5-4460 or above; 4 GB RAM or more; USB 3.0 port. |
| macOS requirements | macOS 10.14 or 10.15; iMac CPU 3.6 GHz Intel Core i7 or above, or MacBook Pro CPU 2.8 GHz Intel Core i7 or above; 16 GB 2400 MHz DDR4 RAM or more; USB 3.0 port. |
| Dimensions | 130 × 52.6 × 29 mm (5.12 × 2.07 × 1.14 in), without base. |
| Package dimensions | 11.5 × 6.7 × 16.8 cm (4.53 × 2.64 × 6.61 in). |
| Unit shipping weight | 440 g (0.97 lb). |
| In the box | camera, USB 3.0 Type-C to Type-A cable, Quick Guide. |
| Identifiers | EAN 4-710710678081, UPC 7-9552296673-5. |
Full research notes and sources
USB 3.0 and lighting requirements
The quick guide recommends a 500+ LM main light and warns that low frame rate or poor color can result from insufficient light, too many active USB devices, unmet system requirements, high CPU or GPU usage, USB hubs or extension cables, or outdated firmware; firmware 0.0.8000.46 is said to fine-tune default image settings.
Fixed focus and framing
The lens is F/2.8 fixed focus with a 94° diagonal field of view and a working distance of 50–200 cm, with a 10 cm minimum distance. You need to sit within that range for a sharp image. The 4K mode is 30 fps; 60 fps is available only at 1080p.
CamEngine and macOS
CamEngine adds manual zoom from 1x to 4x, snapshot, ePTZ with AI body or speech tracking and up to 15 saved custom shots, but its own system requirements are higher than the webcam’s base requirements, including 8 GB RAM or more in the quick guide’s tables. On macOS the camera may show video delay, and the guide suggests delaying audio by 200–1000 ms.
What is not verified
No independent instrumented tests, warranty terms, replacement parts, prices or owner discussions were verified in this pass. Available sources are manufacturer documentation and software and firmware download pages. Power consumption and wattage are not published in the retrieved documents.
Which model this is
This page covers the AVerMedia Live Streamer CAM 513, model PW513, a USB 3.0 4K webcam. Do not confuse it with AVerMedia GC513 capture products, which use a different model number. Identifiers: EAN 4-710710678081, UPC 7-9552296673-5. The Amazon listing for this model is ASIN B08YR8WWWT. Firmware updater versions listed are 0.0.8000.48 for Windows and macOS.
Sources
Manufacturer:
- AVerMedia product page (CAM513)
- PW513 datasheet (US)
- Live Streamer CAM 513 Quick Installation & Troubleshooting Guide
- AVerMedia support/download page
Independent reviews:
- None verified in this pass.
Owner reports:
- None verified in this pass.
